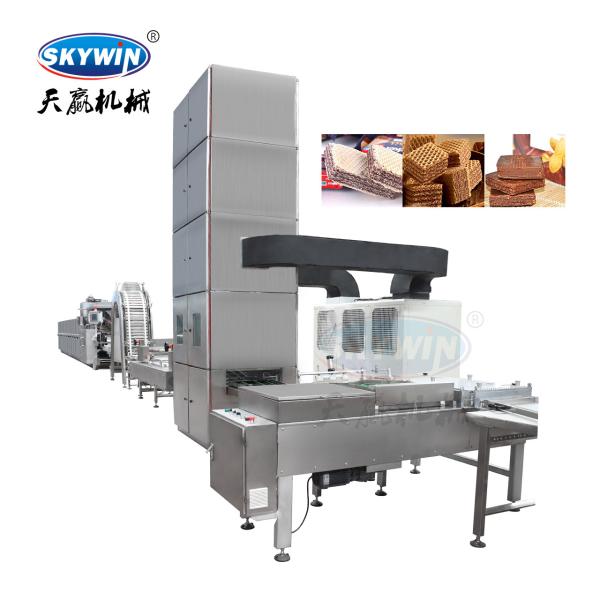

Skywin Hot Sale Chocolate Wafer Biscuit Production Line for Wafer Bar Biscuit Machine / Waffle Maker

SKYWIN supply professional consulting services used in the industry of biscuit production, as well as the most suitable design proposal and quality machines.

1. Skywin wafer stick production line/ chocolate wafer biscuit making machine/ wafer line is used for wafer biscuit forming

2. The whole process is fully automatic including depositing,mould plate vibrating, cooling, demoulding , conveying and plate heating.

3. It can be customized as your requirements

4. Our package by wooden box or pallet or carton box according to requirement and shipped by sea from SHUNDE port.

Wafer Plant Flow, wafer processing steps as following, more detail and inquiry, contact us!

Product Models	27Plates, 33Plates, 39Plates, 45Plates, 51Plates, 63Plates, 69Plates, 75Plates etc.
Capacity	85kg/h to 250kg/h
Energy source	Electrical Oven, LNG or LPG Gas Oven
Availible used	All kinds of Wafer/waffle biscuit production
Full automatic Food grade equipments	Wafer Plant Flow, wafer processing steps as following, contact us to get more details

---

Electric component:

PLC touch screen:SIEMENS
Transducer: SIEMENS
Switch & Button:Schneider
Motor &Gearbox: SEW
Bearing: SKF

Electronic : Schneider

Other required:

· Gas system use MADAS from Italy

· One or Two colors cream spreading machine

· Vertical cooling tower is 4 layers

· Motor: SEW

· Cutting machine will cut by width 470mm, not by length 325mm

· Plates Coated hard chrome thickness 0.3-0.5mm Grids 2.5x2.5x0.5mm ( design confirm by customer)

· Electric controlled by SIEMENS with save card

· Two Chimney and air blowers as customer requested

PROCESSING CHART:

Mixing Baking——Cream Spreading——Laminating——Cooling——Wafer bar Cutting——Packing

Options For Different Capacity

Production process of wafer biscuit production line

Flow & Details

Baking Oven (Electrical or Gas)

1.Equipped with touch screen and programmed by Siemens PLC control

2.Easy to operate /Automatic Temperature Control / lighting / Making mixer / Blowing / Sheet Splicing to finish the baking process.

Door-type Cooling Machine

1.Raise the wafer sheets to natural cooling and to relieve heating stress applied on the wafer sheet

2.Connect the tunnel oven to the cream spreading machine

3.Cooling time: about 3-5min

Cream Mixer

1. To mix the shortening,sugar and other ingredient with tempareture keeping tank and storage barrel.

2. The capacity is 100-200L

Cream Spreading Machine&Laminating

To spreading cream/chocolate/ peanut on the wafer sheet, can laminate into two colors and two tastes sandwich wafer biscuit

Wafer Cooling Cabinet

1. The wafer sheet after spreading cream or chocolate, make sure the crisp taste

2. The temperature can be 0-8degree.

3. The outlet units is separated from the cooling room,so as to make sure the air drying

Wafer Cutting Machine

1. Cutting with blade or steel wire, the size can adjustable through horizontal and vertical automatic.

2. Capacity is 25pc/min

Wafer Packing Machine

Specifications
1 FULL AUTOMATIC
3 FOOD GRADE CONVEYOR BELT

Packaging & Shipping

Our regular packaging is multilayer packing, safe transport, shipping by sea:

Step 1: Mechanical surface coated with preservative solution (to protect stainless steel).

Step 2: The plastic cushion packing machine (prevent bump).

Step 3: Plastic film packaging (to prevent ventilation).

Step 4: Wooden case / frame packaging (easy to transport).

Step 5: Tie the bandage outside of the wooden case (reinforcement overall).

Our Services

Pre-Sales Service After-Sales Service

* Inquiry and consulting support. * Training how to instal the machine
*Provide the best quotation according to your biscuits types,

capacity, factory size,etc. * Training how to use the machine
* Advanced design on oven, we have gas and electric oven

to choose,make high quality biscuit. * Engineers available to service machinery overseas.
*When you send us inquiry,please tell us your biscuit type,

capacity, factory size and oven type. And then we can give you * Supply the receipes if necessary

best quotation.

Company Information

Skywin Machinery(Group)Co.Ltd has own factories which special for biscuit,cookie and wafer machines,auto biscuit sandwiching system with packing system.

Our factory has experienced engineers to design and making machine according to the customers'requirement,they have about 20 years experience.

Our factory provide OEM service.Looking forward to cooperation with you,my dear friends.

And sincerely welcome to visit our factory!

Skywin Foodstuff Machinery(Group) Co,Ltd, founded in 2010, is one of leading high-tech manufacturer for biscuit cookies and wafer making machine.Through resource integration, comprehensive integrated solutions, we providing more thoughtful services to our customers with ensuring the products quality and reduce cost effectively.

Team building refers to a series of structural design, personnel motivation and other team optimization behaviors in order to maximize team performance and output."Staff are first, customers are highest "is the basic philosophy that we've been insisting since Skywin founded. Our company aim to build a team with ability of learning-oriented, high execution, cohesion. Sports room was been set up for staff relaxation. Company's overall image and working environment and positive energy has attracted a group of R&D team and formed from the biscuit machine to the biscuit making machine line terminal product research and development, manufacture complete industry scale.

Skywin with manufacturing, sales and technical after-sales service as a whole system,engaged in professional products. The manufacturers have high-quality professional technicians and advanced modern production equipment. All of the products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.Their well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction.
