    small Horizontal Flow Wrap Packing Machine PLC Controlled

    Ask Lasest Price
    Brand Name : SKYWIN
    Certification : CE,ISO
    Price : $6,150.00/ Set
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 5 Set/Sets per Month
    Delivery Time : 50 days
    • Product Details
    • Company Profile

    small Horizontal Flow Wrap Packing Machine PLC Controlled

    Product Description

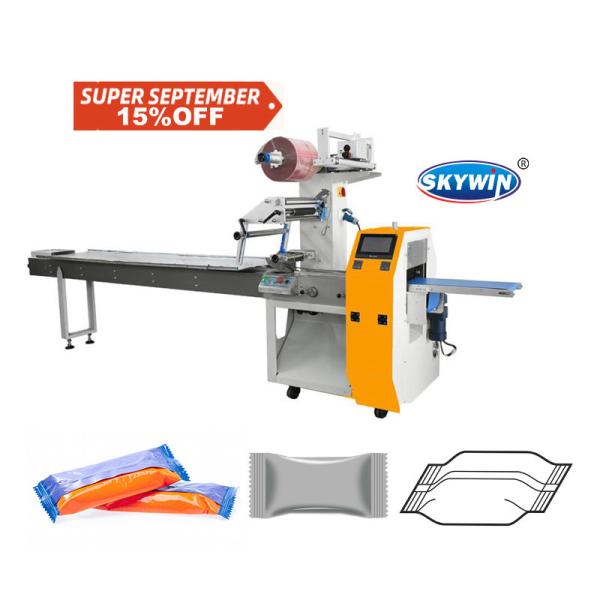

    SK-380s Flow Pack Packing Machine (three servos )

    small Horizontal Flow Wrap Packing Machine PLC Controlled


    Three Servo Motors, Painted steel cover, Schneider Switches, PLC control system, Upper and Down Knife Jaw Temperature separate control, Heating rollers diameter 100 mm, Feeding roller without temperature control, Heating plate with temperature control, sealing rollers single temperature control.


    small Horizontal Flow Wrap Packing Machine PLC Controlledsmall Horizontal Flow Wrap Packing Machine PLC Controlledsmall Horizontal Flow Wrap Packing Machine PLC Controlled


    1). Included packing conveyor;

    2). Double frequency conversion machine, film width 320 mm;

    3). Included date printer;

    4). Speed: 250 to 300 packs/minute;

    5). Bag size: Length 80-500 mm, Width 60-150 mm, Height 5-45 mm;

    6). Max outer diameter < 300 mm;

    7). Max width of the packing film: 380mm;

    8). Packing film thickness: 0.04-0.07 mm;

    9). Machine dimension: (L*W*H): 5200 * 950 * 1650;

    10). Power consumption: 3.6 KW/Single phase: 220 V/50 Hz;

    11). Weight: 750 kg.

    small Horizontal Flow Wrap Packing Machine PLC Controlledsmall Horizontal Flow Wrap Packing Machine PLC Controlled

    small Horizontal Flow Wrap Packing Machine PLC Controlled

    Specification
    Model
    SK-380S
    Total power
    6KW
    Bag length
    80-500mm
    Bag width
    60-160mm
    Product height
    5-45mm
    Film Width
    80-370mm
    Packing speed
    30-350 packs/min
    Machine weight
    450 kg
    Machine Size
    4000*950*1625 mm
    Power supply type
    220V 50Hz
    Film material
    OPP/PE,PVC,OPP/CPP,PT/PE/KOP/CP,Aluminum film
    Optional Device
    Date Coder / Air-filing Device / Punching Device and etc.

    Packing & Delivery
    small Horizontal Flow Wrap Packing Machine PLC Controlled
    small Horizontal Flow Wrap Packing Machine PLC Controlled
    small Horizontal Flow Wrap Packing Machine PLC Controlled
    Step 1: Mechanical surface coated with preservative solution (to protect stainless steel).
    Step 2: The plastic cushion packing machine (prevent bump).
    Step 3: Plastic film packaging (to prevent ventilation).
    Step 4: Wooden case / frame packaging (easy to transport).
    Step 5: Tie the bandage outside of the wooden case (reinforcement overall).
    small Horizontal Flow Wrap Packing Machine PLC Controlled


    ​​
