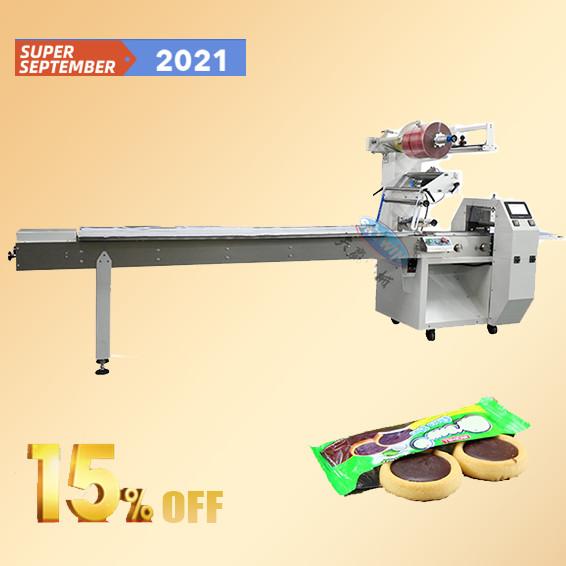

    SK-380S 3 Servo Automatic Controlled Flow Pillow Biscuit Packing Machine

    Ask Lasest Price
    Brand Name : SKYWIN
    Model Number : SK-380S
    Certification : CE
    Price : EXW price 5,500 USD
    Payment Terms : L/C, T/T
    Supply Ability : 1 set / 45 days
    Delivery Time : 10 work days
    • Product Details
    • Company Profile

    SK-380S 3 Servo Automatic Controlled Flow Pillow Biscuit Packing Machine

    2021 Super September Promotion
    Reduce the price, without reducing the quality!

    SK-380S 3 Servo Automatic Controlled Flow Pillow Biscuit Packing Machine

    3 Servo Motors; Painted steel cover; Schneider Switches; PLC control system; High Speed Flow Packing Machine; conveyor length 2.4m

    SK-380S 3 Servo Automatic Controlled Flow Pillow Biscuit Packing Machine


    Product Details


    SK-380S

    flow pack packaging machine


    • 3 SERVOS---1.FILM&END SEALER/2.CENTER SEALER/3.CONVEYOER
    • One ink type date printer
    • Standard conveyor belt length 2540mm, side plate support.
    • Photo sensor
    • With Middle plastic brush or stainless steel belt.
    • Packing speed: 250-300bag/min (Subject to material and thickness of film and packaging type)
    • Bag size:Length 80-500mm, Width 60-150mm, Height 5-45mm
    • Max outer diameter < 300 mm
    • Max width of the packing film: 380mm
    • Max width of the packing film: 380mm
    • Packing film thickness: 0.03-0.07mm
    • Total power consumption: 5.6KW / Single 220VAC/50Hz
    • Machine Size: 4200 x 950 x 1650mm (L x W x H)
    • Food contact part 304 Stainless Steel
    • Machine weight: 650 kg

    SK-530S

    flow pack packaging machine


    • 304 Stainless steel cover&Structure.
    • 3 Delta Servo Motors
    • Schneider Switches
    • PLC control system
    • Upper and Down Knife Jaw Temperature separate control
    • Feeding roller without temperature control
    • Heating rollers&Heating plate with temperature control
    • Sealing rollers single temperature control.
    • Film width 370mm
    • included Ink date printer
    • Speed: 30 to 350 packs/minute
    • Bag size:
    • Length 80-500mm(Adjustable by screen), Width 35-160mm, Height 5-55mm
    • Max outer diameter < 300 mm,
    • Max width of the packing film: 380mm,
    • Packing film thickness: 0.04-0.07mm
    • Machine dimension: (L x W x H): 4000 x 950mm x 1650mm
    • Power consumption: Single phase: 220V/50Hz
    • Total Power 6kw
    • Heating power 3.5kw
    • End seal servo 1kw,film servo 0.75kw,Conveyor servo 0.4kw
    • Gross weight: 450kg
    • Packing materials:OPP/PE/PVC/CPP/PTPE/KOP/CPP/ALUMINUM FILM.Conveyor feeding belt for the Flow packing machine


    SK-380S 3 Servo Automatic Controlled Flow Pillow Biscuit Packing Machine

    SK-380S 3 Servo Automatic Controlled Flow Pillow Biscuit Packing Machine

    SK-380S 3 Servo Automatic Controlled Flow Pillow Biscuit Packing MachineSK-380S 3 Servo Automatic Controlled Flow Pillow Biscuit Packing Machine

    SK-380S 3 Servo Automatic Controlled Flow Pillow Biscuit Packing Machine

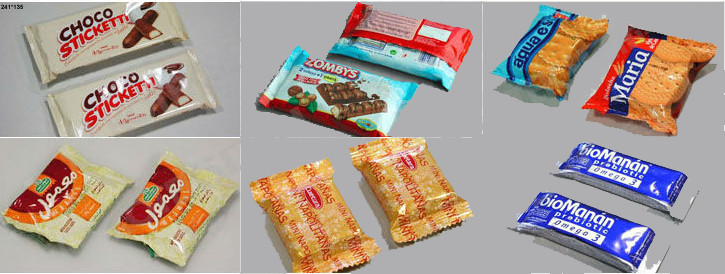

    Packing Sample


    SK-380S 3 Servo Automatic Controlled Flow Pillow Biscuit Packing Machine


    SK-380S 3 Servo Automatic Controlled Flow Pillow Biscuit Packing Machine


    More details, Please contect with us!!!


    SK-380S 3 Servo Automatic Controlled Flow Pillow Biscuit Packing Machine


    Packing&Shipping


    SK-380S 3 Servo Automatic Controlled Flow Pillow Biscuit Packing Machine


    Welcome to contect me!
