1.Reliable performance, stable operation, long service life. All
motor, electrical equipment ,PLC, bearing adopts international and
Chinese famous brand
2.Reasonable layout, compact structure, small occupation, the body
length of the baking oven is only 2/3 of the same type of product.
3.High automatic, stand-alone machine can be controlled separately,
simple operation and easy maintenance
4.High demoulding rate and finished product rate of no less than 98%
5.Special energy conservation design, low energy cost, can reduce
pollution to an extreme
6.Machines’ material comply with food hygiene standard, all parts
which is connected with food are adopt stainless steel
7 Gas or electric oven , capacity can be design depend on customer's
require

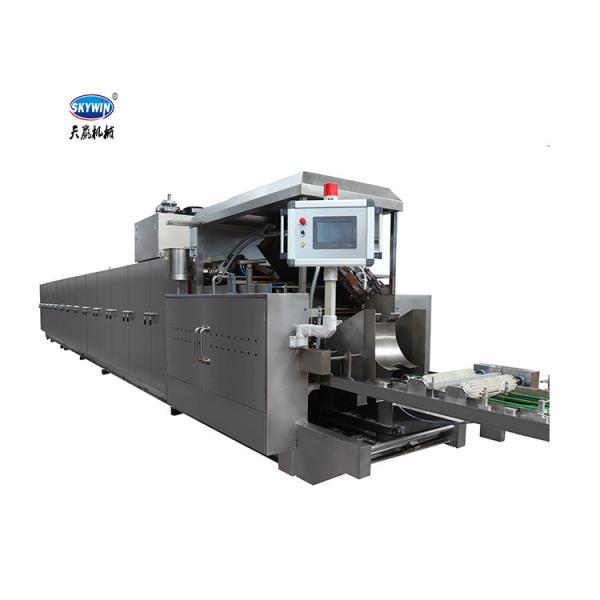

Main Technical and Requirements:
1. The whole shell of the production line adopts 304 Stainless
Steel in accordance with the health and safety standard.
2. The electricity and transmission components are all usedSiemens ,Mitsubishi ,touch screen to ciontrol and adopts the
Interenational Brand Germany SEW,SKFto make the whole line steadily.
3. In according to the clients ' requirements ,we can make a wide
range of size and shape cream (chocolate ) filled wafer biscuit
full automatically.
Technical Data
mould
27
31
33
39
45
51
65
69
71
Baking Oven Length(mm)
6000
6750
7150
8300
9450
10600
13300
14000
14400
Whole Line Length(mm)
22000
22750
23150
24300
25450
26600
29300
30000
30400
Power (kW)
5.52
5.52
5.52
5.52
5.52
5.52
5.52
5.52
5.52
LPG(kg/h)
13
15
15
19
23
27
32
35
37
LNG(m3/h)
16
19
21
25
30
35
45
47
50
Electrical Heating Power(kW)
90
105
110
130
150
170
215
230
235
Capacity(pcs/min)
14
16
17
20
23
26
33
35
36
Other required:
· Gas system use MADAS from Italy
·Two colors cream spreading machine
· Vertical cooling tower is 4 layers
· Motor: SEW
·Cutting machine will cut by width 470mm, not by length 325mm
· Plates Coated hard chrome thickness 0.3-0.5mm Grids 2.5x2.5x0.5mm
( design confirm by customer)
· Electric controlled by SIEMENS with save card
· Two Chimney and air blowers as customer requested
PROCESSING CHART
Mixing Baking——Cream Spreading——Laminating——Cooling——Wafer bar
Cutting & Wrapping——Packing
Step 2: The plastic cushion packing machine (prevent bump).
Step 3: Plastic film packaging (to prevent ventilation).
Step 4: Wooden case / frame packaging (easy to transport).
Step 5: Tie the bandage outside of the wooden case (reinforcement
overall).
Our Services
1.Guaranteed 1 year , long time maintain , accessories change , not
including easy broken part
2.If need , send engineer to installation ,teach how to operation
machine and training workers
3.Provide recipe free to customer, produce biscuit
4.Design layout and proposal as per customer factory size
