Automatic Soft Biscuit Making Machine Gas Oven Baking Equipment Soft Biscuit Production Line

    Buy cheap Automatic Soft Biscuit Making Machine Gas Oven Baking Equipment Soft Biscuit Production Line from wholesalers

    Buy cheap Automatic Soft Biscuit Making Machine Gas Oven Baking Equipment Soft Biscuit Production Line from wholesalers
    • Buy cheap Automatic Soft Biscuit Making Machine Gas Oven Baking Equipment Soft Biscuit Production Line from wholesalers
    • Buy cheap Automatic Soft Biscuit Making Machine Gas Oven Baking Equipment Soft Biscuit Production Line from wholesalers
    • Buy cheap Automatic Soft Biscuit Making Machine Gas Oven Baking Equipment Soft Biscuit Production Line from wholesalers
    • Buy cheap Automatic Soft Biscuit Making Machine Gas Oven Baking Equipment Soft Biscuit Production Line from wholesalers
    • Buy cheap Automatic Soft Biscuit Making Machine Gas Oven Baking Equipment Soft Biscuit Production Line from wholesalers

    Automatic Soft Biscuit Making Machine Gas Oven Baking Equipment Soft Biscuit Production Line

    Ask Lasest Price
    Brand Name : SkywinBake
    Certification : CE SGS ISO
    Supply Ability : 5 Set/Sets per Quarter
    Price : $500,000.00 - $800,000.00 / Set
    • Product Details
    • Company Profile

    Automatic Soft Biscuit Making Machine Gas Oven Baking Equipment Soft Biscuit Production Line


    Automatic Biscuit Making Machine /Gas Oven Biscuit Baking Equipment /Soft And Hard Biscuit Production Line
    Skywin Multi-functional Hard and Soft Biscuit Production Line is widely use available for making all kinds of biscuits( Hard and Soft biscuit, cream filling biscuit, Soda Cracker, Cookies, also Stick biscuit, Print biscuit ).

    Different shape biscuit customized by biscuit mould, we also can design moulds for you as per your specific requirements.

    A whole line consist of:

    1) Horizontal dough mixer, 250-500kg /batch, vertical dough mixer 500 kg/batch
    2) Automatic dough tipper and feeding system
    3) Three-roll combination sheeter for feeding and sheeting dough
    4) Three Sets of Gauge rolls B/C/D .
    5) Rotary cutting machine for hard biscuit forming
    6) Scrap collection and return system
    7) Rotary moulder for soft biscuit forming
    8) Salt/sugar spreading machine
    9) Tunnel oven, electric, indirect gas fried or hybrid gas oven for option,
    length is depend on capacity.
    10) Turning machine 180degree or 90degree design as per the plant length
    11) Cooling conveyor
    12) Biscuit stacking machine (start wheel stacker or penny stacker)
    13) Packing table
    Automatic Soft Biscuit Making Machine Gas Oven Baking Equipment Soft Biscuit Production Line
    Automatic Soft Biscuit Making Machine Gas Oven Baking Equipment Soft Biscuit Production Line

    Product Details
    Work Width(mm) & Length of Oven(30-60m)
    Capacity(kg)
    400
    100-200
    600
    200-400
    800
    400-600
    1000
    600-800
    1200
    800-1000
    1500
    1200-1500

    Horizontal Dough mixer(For Both Hard Dough and Soft dough)
    Automatic Soft Biscuit Making Machine Gas Oven Baking Equipment Soft Biscuit Production Line
    1). Speed from 25r/min to Max.
    Speed60r/min, frequency speed
    2). SEW/Chinese Brand motor & gearbox
    3). Full stainless steel 304#
    4). with one Dough Tub capacity 150kgs.
    5). Tub thickness 5mm and 8mm.
    6). Newest design touch screen
    Siemens PLC control system.
    Dough Cutting and Feeding System
    Automatic Soft Biscuit Making Machine Gas Oven Baking Equipment Soft Biscuit Production Line
    Automatic Soft Biscuit Making Machine Gas Oven Baking Equipment Soft Biscuit Production Line
    Soft Biscuit Forming Part
    You can changing the biscuit shapes by changing the biscuit moulds.
    Rotary Moulder for Soft Biscuit
    1) Mould working width 400-1500mm
    2) Speed control by frequency inverter
    3) Siemens inverter and PLC touch screen
    4) Main driver Chinese Brand motor&gearbox
    5) Main bearing NSK &CHinese brand
    Automatic Soft Biscuit Making Machine Gas Oven Baking Equipment Soft Biscuit Production Line
    Automatic Soft Biscuit Making Machine Gas Oven Baking Equipment Soft Biscuit Production Line

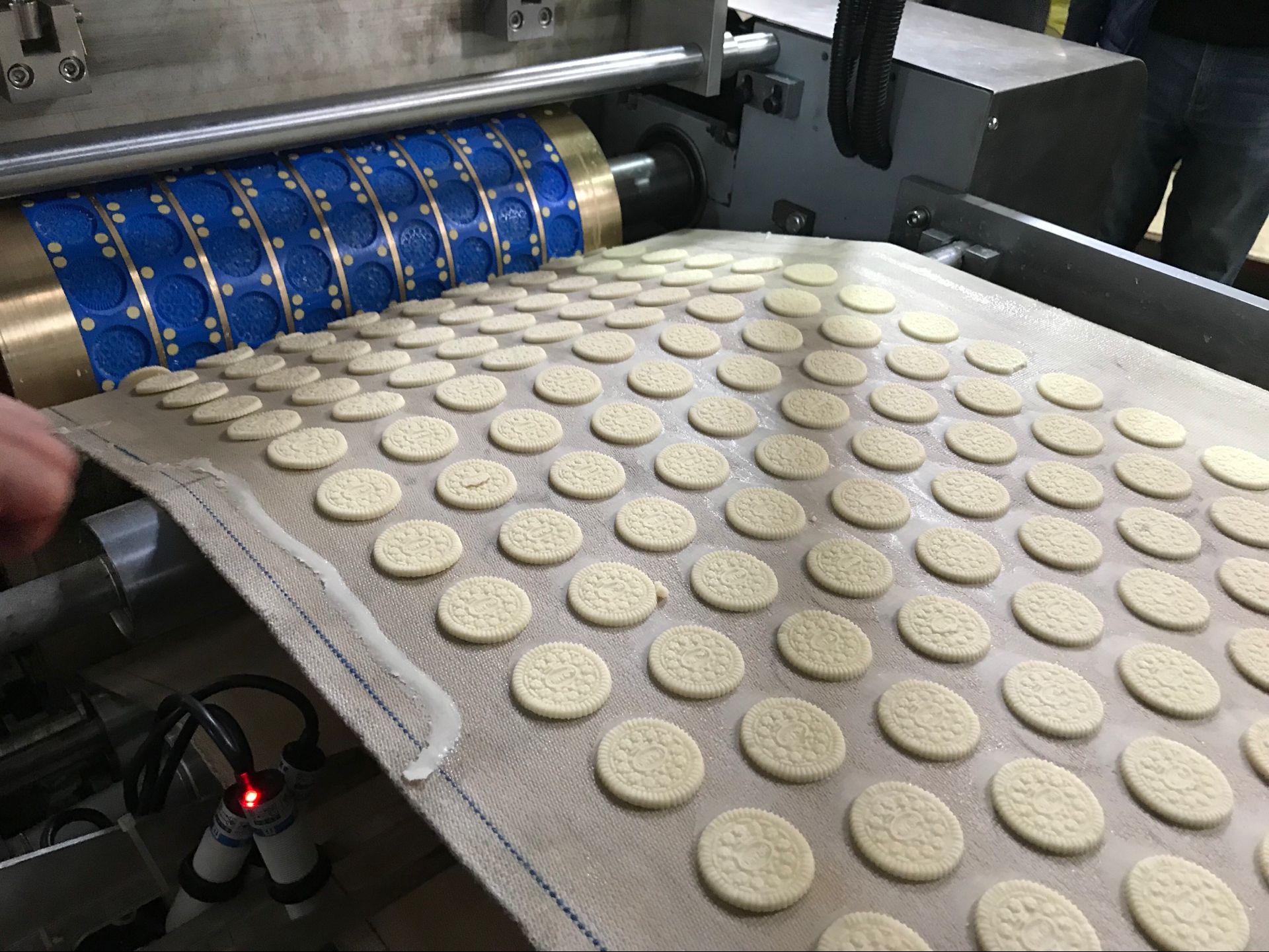

    Soft Biscuit Forming
    Automatic Soft Biscuit Making Machine Gas Oven Baking Equipment Soft Biscuit Production Line

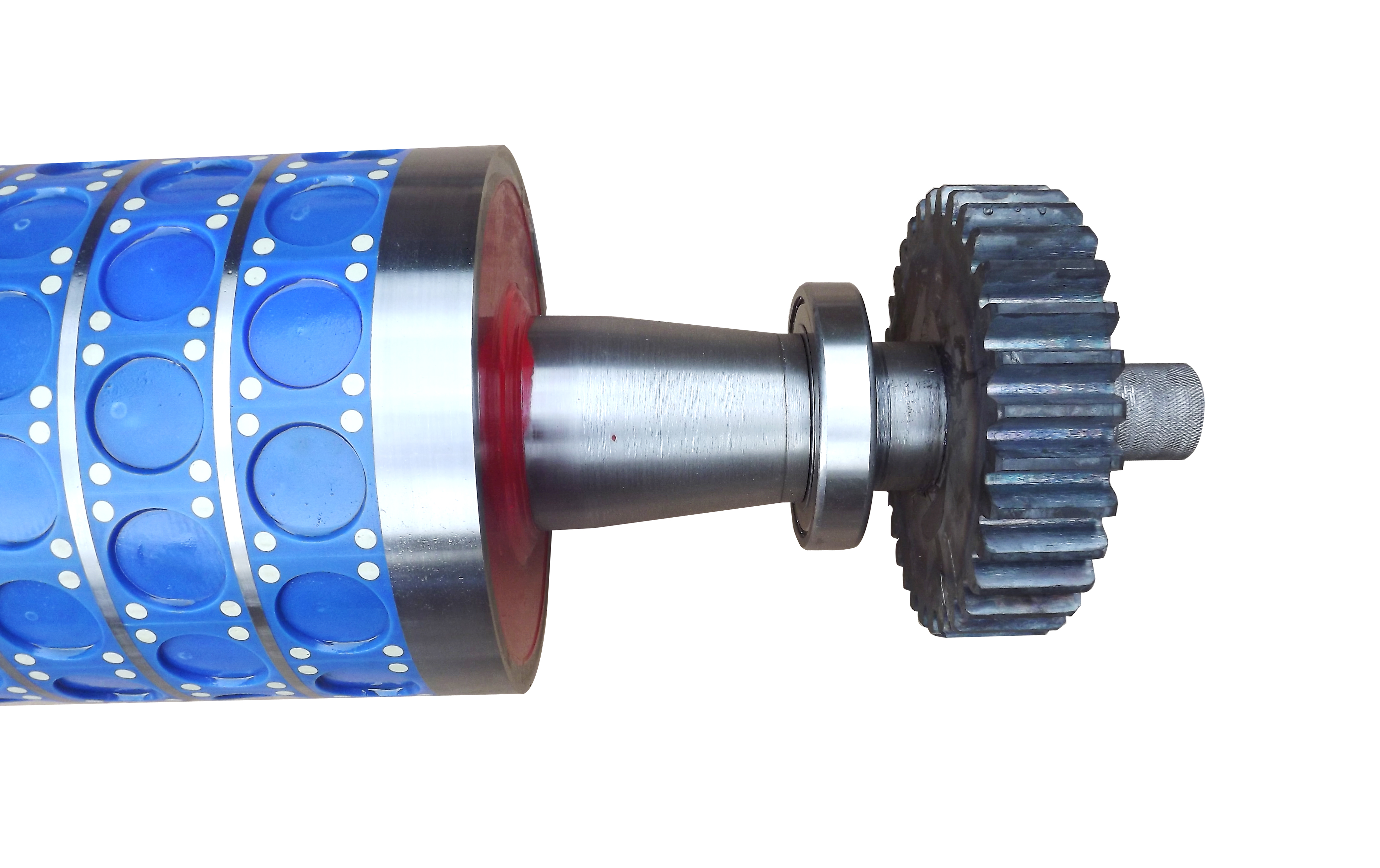

    Soft Biscuit Mould
    Biscuit Gas/Electric Baking Tunnel Oven
    Hybrids Direct Gas and Indirect Gas circulation Tunnel oven
    1). Temperature 5 zones
    2). 9m pre-heating mesh belt
    3). 65m divided into 5 temperature zone
    4). Siemens inverter and PLC touch screen
    5). Air blower for hot wind circulation system
    6). Pneumatic automatic tracking and adjust
    belt and tension
    7). Oven cover by 304 Stainless steel
    8). Heat resistant material: rock wool
    Automatic Soft Biscuit Making Machine Gas Oven Baking Equipment Soft Biscuit Production Line
    Cooling Conveyor & Packing Machine
    Automatic Soft Biscuit Making Machine Gas Oven Baking Equipment Soft Biscuit Production Line
    Cooling Conveyor
    1. Food grade PU belt
    2. Independent frequency inverter control and adjust
    3. Siemens inverter and Schneider electric
    4. Main driver SEW motor and gearbox
    5. Main bearing NSK
    Automatic Soft Biscuit Making Machine Gas Oven Baking Equipment Soft Biscuit Production Line

    Automatic Horizontal Packing Machine Model SKY-380S

    High Speed Flow Packing Machine,conveyor length 2.5m

    1) Included packing conveyor
    2) Servo Motor machine, film width 320mm
    3) included date printer
    4) Speed: 50 to 350 packs/minute
    5) Max width of the packing film: 380mm,
    Automatic Soft Biscuit Making Machine Gas Oven Baking Equipment Soft Biscuit Production Line
    Packing&Shipping
    Automatic Soft Biscuit Making Machine Gas Oven Baking Equipment Soft Biscuit Production Line
    Step 1: Mechanical surface coated with preservative solution (to protect stainless steel).
    Step 2: The plastic cushion packing machine (prevent bump).
    Step 3: Plastic film packaging (to prevent ventilation).
    Step 4: Wooden case / frame packaging (easy to transport).
    Step 5: Tie the bandage outside of the wooden case (reinforcement overall).
    Certifications
    Automatic Soft Biscuit Making Machine Gas Oven Baking Equipment Soft Biscuit Production Line
    Our machines was approve Certificate of CE certificate, Utility Model Utility Patents and Certificate of Design Patent. We obtained 12 National Patent, 8 for biscuit machine and 4 for sandwich biscuit machine connected packing system.
