    27 Plates 39 Plates Fully Automatic Wafer Making Machine SIEMENS Motor

    Ask Lasest Price
    Brand Name : SkywinBake
    Certification : CE ISO SGS
    Supply Ability : 3 Set/Sets per Quarter wafer biscuit making production line
    Price : $200,000.00
    • Product Details
    • Company Profile

    27 Plates 39 Plates Fully Automatic Wafer Making Machine SIEMENS Motor

    Product Description

    1. Skywin wafer stick production line/ chocolate wafer biscuit making machine/ wafer line is used for wafer biscuit forming

    2. The whole process is fully automatic including depositing,mould plate vibrating, cooling, demoulding , conveying and plate heating.

    3. It can be customized as your requirements

    4. Our package by wooden box or pallet or carton box according to requirement and shipped by sea from SHUNDE port.


    Product Models
    27Plates, 33Plates, 39Plates, 45Plates, 51Plates, 63Plates, 69Plates, 75Plates etc.
    Capacity
    80kg/h to 200kg/h
    Energy source
    Electrical Oven, Natural or LPG Gas Oven
    Availible used
    All kinds of Wafer biscuit
    Full automatic
    Food grade equipments
    Wafer Plant Flow, wafer processing steps as following, contact us to get more details
    Carmen Lee(Ms)
    Whatsapp / Mobile:+86 18148750469
    Products Show
    27 Plates 39 Plates Fully Automatic Wafer Making Machine SIEMENS Motor

    Electric component:

    PLC touch screen:SIEMENS
    Transducer: SIEMENS
    Switch & Button:Schneider
    Motor &Gearbox: SEW
    Bearing: SKF

    Electronic : Schneider

    Other required:

    · Gas system use MADAS from Italy

    ·Two colors cream spreading machine

    · Vertical cooling tower is 4 layers

    · Motor: SEW

    ·Cutting machine will cut by width 470mm, not by length 325mm

    · Plates Coated hard chrome thickness 0.3-0.5mm Grids 2.5x2.5x0.5mm ( design confirm by customer)

    · Electric controlled by SIEMENS with save card

    · Two Chimney and air blowers as customer requested


    PROCESSING CHART

    Mixing Baking——Cream Spreading——Laminating——Cooling——Wafer bar Cutting & Wrapping——Packing


    Flow & Details
    27 Plates 39 Plates Fully Automatic Wafer Making Machine SIEMENS Motor

    Baking Oven (Electrical or Gas)

    1.Equipped with touch screen and programmed by Siemens PLC control

    2.Easy to operate /Automatic Temperature Control / lighting / Making mixer / Blowing / Sheet Splicing to finish the baking process.

    27 Plates 39 Plates Fully Automatic Wafer Making Machine SIEMENS Motor

    Door-type Cooling Machine

    1.Raise the wafer sheets to natural cooling and to relieve heating stress applied on the wafer sheet

    2.Connect the tunnel oven to the cream spreading machine

    3.Cooling time: about 3-5min

    27 Plates 39 Plates Fully Automatic Wafer Making Machine SIEMENS Motor

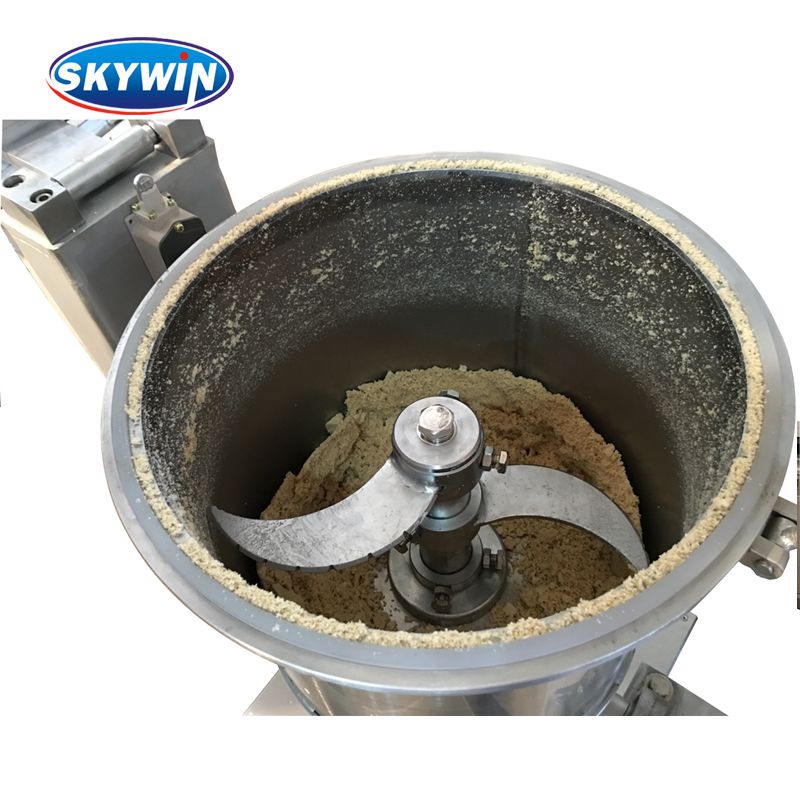

    Smashing Machine

    1.For grinding the discarded wafer and the overall wastage from the whole process of the wafer making to through high speed blade.

    2.capacity is about 15-60KG

    27 Plates 39 Plates Fully Automatic Wafer Making Machine SIEMENS Motor

    Wafer batter mixer

    For mix the flour,ingredients,oil and other material
    27 Plates 39 Plates Fully Automatic Wafer Making Machine SIEMENS Motor

    Cream Mixer

    1. To mix the shortening,sugar and other ingredient with tempareture keeping tank and storage barrel.
    2. The capacity is 100-200L
    27 Plates 39 Plates Fully Automatic Wafer Making Machine SIEMENS Motor

    Cream Spreading Machine&Laminating

    To spreading cream/chocolate/ peanut on the wafer sheet, can laminate into two colors and two tastes sandwich wafer biscuit
    27 Plates 39 Plates Fully Automatic Wafer Making Machine SIEMENS Motor

    Wafer Cutting Machine

    1. Cutting with blade or steel wire, the size can adjustable through horizontal and vertical automatic.
    2. Capacity is 25pc/min
    27 Plates 39 Plates Fully Automatic Wafer Making Machine SIEMENS Motor

    Wafer Cooling Cabinet

    1. The wafer sheet after spreading cream or chocolate, make sure the crisp taste

    2. The temperature can be 0-8degree.

    3. The outlet units is separated from the cooling room,so as to make sure the air drying

    Wafer Packing Machine

    Specifications
    1 FULL AUTOMATIC
    3 FOOD GRADE CONVEYOR BELT


    27 Plates 39 Plates Fully Automatic Wafer Making Machine SIEMENS Motor
    Packing & Delivery

    Packing Details : Inner packing: with film packing

    Outside:Wooden packing, fit by sea

    Delivery Details : Shipped in 90-120 days after get payment

    Terms of Payment:
    40% should be paid by T/T as deposit, 60% balance should be paid by T/T before delivery.

    Certification
    27 Plates 39 Plates Fully Automatic Wafer Making Machine SIEMENS Motor
    Company
    27 Plates 39 Plates Fully Automatic Wafer Making Machine SIEMENS Motor

    Skywin Foodstuff Machinery Co.,Ltd. was established in 2010 as a manufacturer, which specialized in biscuit production lines and cookie production lines and wafer biscuit production lines.

    Skywin provide one-stop solution and service from biscuit production to biscuit sandwiching, biscuit chocolate enrobing and biscuit packing. Fully automatic by PLC control.

    We will supply professional consulting services used in the industry of biscuit production, as well as the most suitable design proposal and quality machines.
