This machine is available for all kinds of biscuits( Hard and Soft biscuit, Soda Cracker, Cookies, also Stick biscuit, Print biscuit and Chocolate filling biscuit), different shape biscuit just need to change the mould ,we also can design mould for you as per your details.

1. Skywin Model 400mm or 600mm or 1000mm or 1200mm or 1500mm, capacity from 100kg-1800kg/hr.
2. It is widely available for making all kinds of biscuits( Hard and Soft biscuit, Soda Cracker, Cookies, also Stick biscuit, Potato chips, hello panda biscuit, Print biscuit and Chocolate filling biscuit)
3. Different shape biscuit just need to change the mould, we also can design mould for you according to your requireme

Biscuit production line processing from dough mixing, hard and soft biscuit forming, biscuit baking, biscuit cooling, biscuit packing. From mixing to biscuit packing, whole biscuit production line consist of units as above.

Main Characters:
1.Oven body length according to your work shop
2. 4 zones
3. divided into 4 temperature zone
4 .Siemens inverter and PLC touch screen
5. 4 sets of Air blower for hot wind circulation system
6. SEW motor and gearbox
7. Main bearing NSK
8. Electric automatic tracking and adjust belt and tension
9. Mesh belt width 1080mm
10. Oven cover by 304 Stainless steel
11. Heat resistant material: rock wool
12. Both side: 250mm thickness; Bottom 230mm thickness, top 350mm thickness rock wool.
13. 3 set pneumatic tracking installed on enter oven, exit oven and oven bottom
14. Motors: 9pcs
15. Gearbox: 8pcs
16. Power: 16.95kw
17. Gross weight: 600000kgs

A whole line consist of:

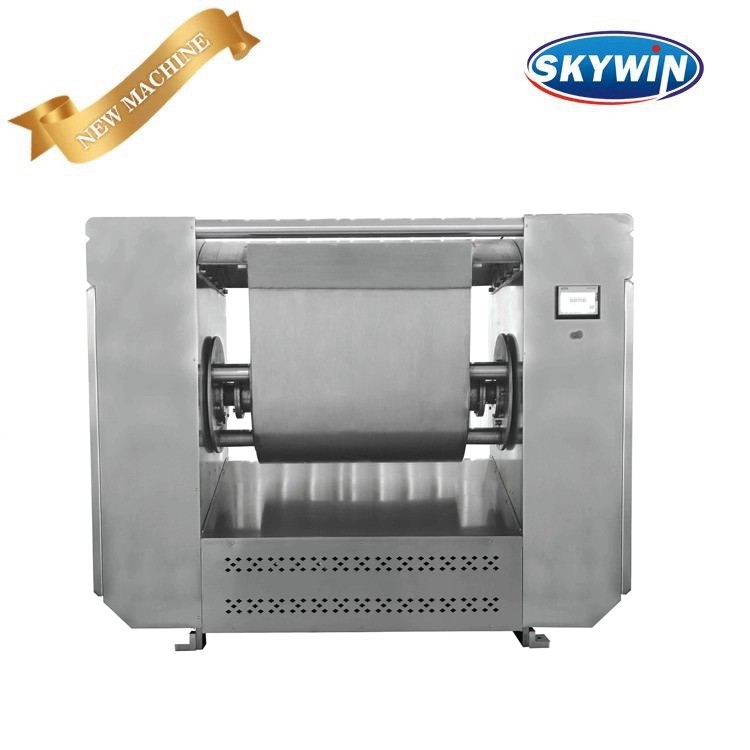

1. Horizontal dough mixer, 250kg/batch, vertical dough mixer 500kg/batch
2. Automatic dough tipper and feeding system
3. Three-roll combination sheeter for feeding and sheeting dough
4. Laminator for overlapping dough to sheeting on gauge rolls, included cream spreading machine.
5. Gauge rolls
6. Rotary cutting machine for hard biscuit forming
7.. Scrap collection and return system
8. Rotary moulder for soft biscuit forming
9. Salt/sugar sprinkle machine
10. Tunnel oven, electric, indirect gas fried or hybrid gas oven for option, length is depend on capacity.
11. Oil spraying machine
12. Turning machine 180degree or 90degree design as per the plant length
13. Cooling conveyor
14. Biscuit stacking machine (start wheel stacker or penny stacker)
15. Packing table

Electric component:
Chinese motor & gearbox (NSK for your choose)
SIEMENS PLC, inverter
NKS bearing Chinese
AIRTA air-cylinder
Cotton and PU conveyor belt 1.5-1.8mm
Wire mesh belt V type
Plates covered hard chrome, thickness 18mm
Stainless steel thickness 1.5-2mm

Stainless steel mixing bucket, NSK bearing, PLC screen controlled, frequency speed 0-60r/min

Hard biscuit forming line have three-roll sheeter, laminator, B/C/D gauge roll combination, rotary cutter and separator. Dough sheeting thickness can be 1mm.

The forming mould can be change, Machine cover 304 Stainless steel, food grade PU conveyor belt with guides groove, SIEMENS transducer electric and PLC touch screen control.

This machine can make different shapes of soft biscuit ,just need to change the mould

There are three types of tunnel oven electric, gas and diesel oil. It depends on the natural resources of different countries. Some contries is abundant in gas.

Full 304 Stainless steel cover, Siemens PLC touch screen control, insolate wood cotton, hot air circulation system, have automatic alarm device.

Pneumatic automatic tracking and adjust belt and tension.

The size of the oven determines the biscuit capacity.

Using for stacking biscuit. The packing table connect with stacker,it is convenient for packing.

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
