    Width 800mm Bakery Biscuit Production Plant / Industrial Biscuit Machine 600kg/H

    Ask Lasest Price
    Brand Name : SkywinBake
    Certification : CE ISO SGS
    Supply Ability : 100 Set/Sets per Month Bakery Biscuit Making Machine
    Price : $200,000.00
    • Product Details
    • Company Profile

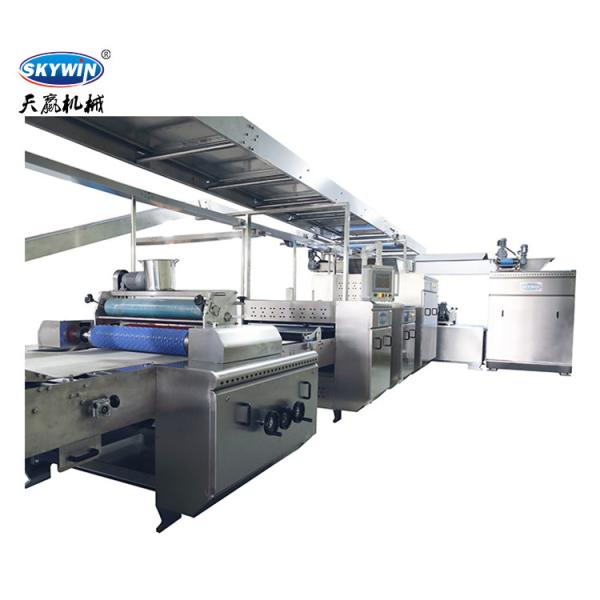

    Width 800mm Bakery Biscuit Production Plant / Industrial Biscuit Machine 600kg/H

    China Bakery Machine Biscuit Maker Full Automatic Industrial Biscuit Production Line

    A whole line consist of:

    1. Horizontal dough mixer, 150-500 kg/batch
    2. Automatic dough tipper and feeding system
    3. Rotary moulder for Soft Biscuit Forming
    4. Tunnel oven, electric/indirect gas fried or hybrid gas oven for option,
    length is depend on capacity. Capacity Option:100-1500KG/HR
    5. Turning machine 180degree or 90degree design as per the plant length
    6. Cooling conveyor
    7. Biscuit stacking machine (start wheel stacker or penny stacker)
    8 .Packing table
    9. Biscuit Sandwich Machine Connect to Packing Machine (For Making Sandwich Biscuit)
    Product Details
    Work Width(mm) & Length of Oven(30-60m)
    Capacity(kg)
    400
    100-200
    600
    200-400
    800
    400-600
    1000
    600-800
    1200
    800-1000
    1500
    1000-1200

    Width 800mm Bakery Biscuit Production Plant / Industrial Biscuit Machine 600kg/H
    Machine Component:
    1. Chinese famous brand motor & gearbox
    2. SKF bearing
    3. SMC Penumatic cylinder for belt tension and deflecting adjustment
    4. PU and Cotton belt
    5. 304 Stainless steel cover, thickness 1.5-2.0mm
    6. SIEMENS transducer electric and PLC touch screen control.
    7. Guarantee for 1 year along with recommended spare parts for 1 year.
    A. Horizontal Dough mixer(For Both Hard Dough and Soft dough)
    Width 800mm Bakery Biscuit Production Plant / Industrial Biscuit Machine 600kg/H
    Width 800mm Bakery Biscuit Production Plant / Industrial Biscuit Machine 600kg/H

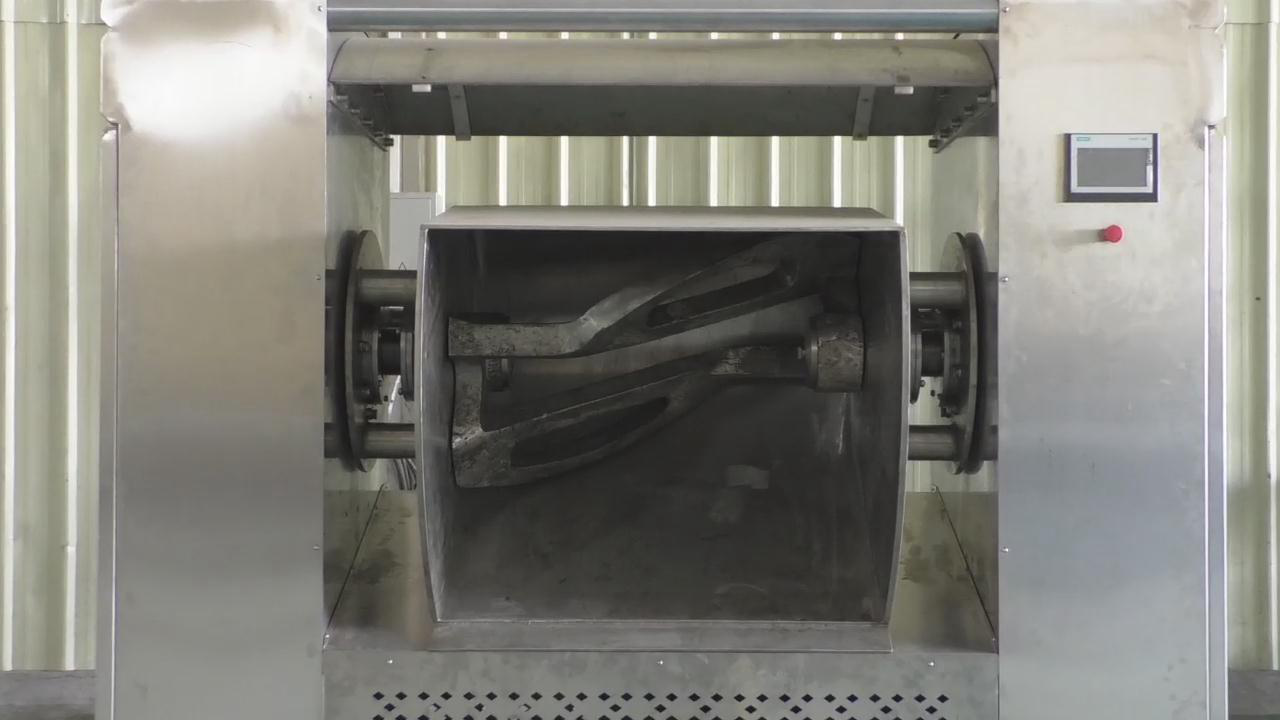

    Horizontal dough mixer for soft biscuit and hard biscuit dough
    1) Speed from 25r/min to Max. Speed60r/min, frequency speed
    2) SEW/Chinese Brand motor & gearbox
    3) Full stainless steel 304#
    4) with one Dough Tub capacity 150-500kgs
    5) Tub thickness 5mm and 8mm
    6) Newest design touch screen Siemens PLC control system
    B. Dough Cutting and Feeding System
    Width 800mm Bakery Biscuit Production Plant / Industrial Biscuit Machine 600kg/H
    Width 800mm Bakery Biscuit Production Plant / Industrial Biscuit Machine 600kg/H
    C. Soft Biscuit Forming Machine(Two Mould For Free)
    This machine is for making the Soft Biscuits,
    you can changing the biscuit shapes by changing the biscuit moulds.
    Width 800mm Bakery Biscuit Production Plant / Industrial Biscuit Machine 600kg/H
    Horizontal Rotary Moulder for Soft Biscuit
    1) Mould working width 400-1500mm
    2) Adjusted by PLC
    3) Speed control by frequency inverter
    4) Siemens inverter and PLC touch screen
    5) Main driver SEW/Chinese Brand motor and gearbox
    6) Main bearing NSK
    Width 800mm Bakery Biscuit Production Plant / Industrial Biscuit Machine 600kg/H

    Soft Biscuit Mould

    D. Biscuit Gas/Electric Baking Tunnel Oven
    Hybrids Direct Gas and Indirect Gas circulation Tunnel oven
    1). Temperature 5 zones
    2). 9m pre-heating mesh belt
    3). 65m divided into 5 temperature zone
    4). Siemens inverter and PLC touch screen
    5). Air blower for hot wind circulation system
    6). Pneumatic automatic tracking and adjust
    belt and tension
    7). Oven cover by 304 Stainless steel
    8). Heat resistant material: rock wool
    Width 800mm Bakery Biscuit Production Plant / Industrial Biscuit Machine 600kg/H
    E. Auto Packing System.
    Width 800mm Bakery Biscuit Production Plant / Industrial Biscuit Machine 600kg/H

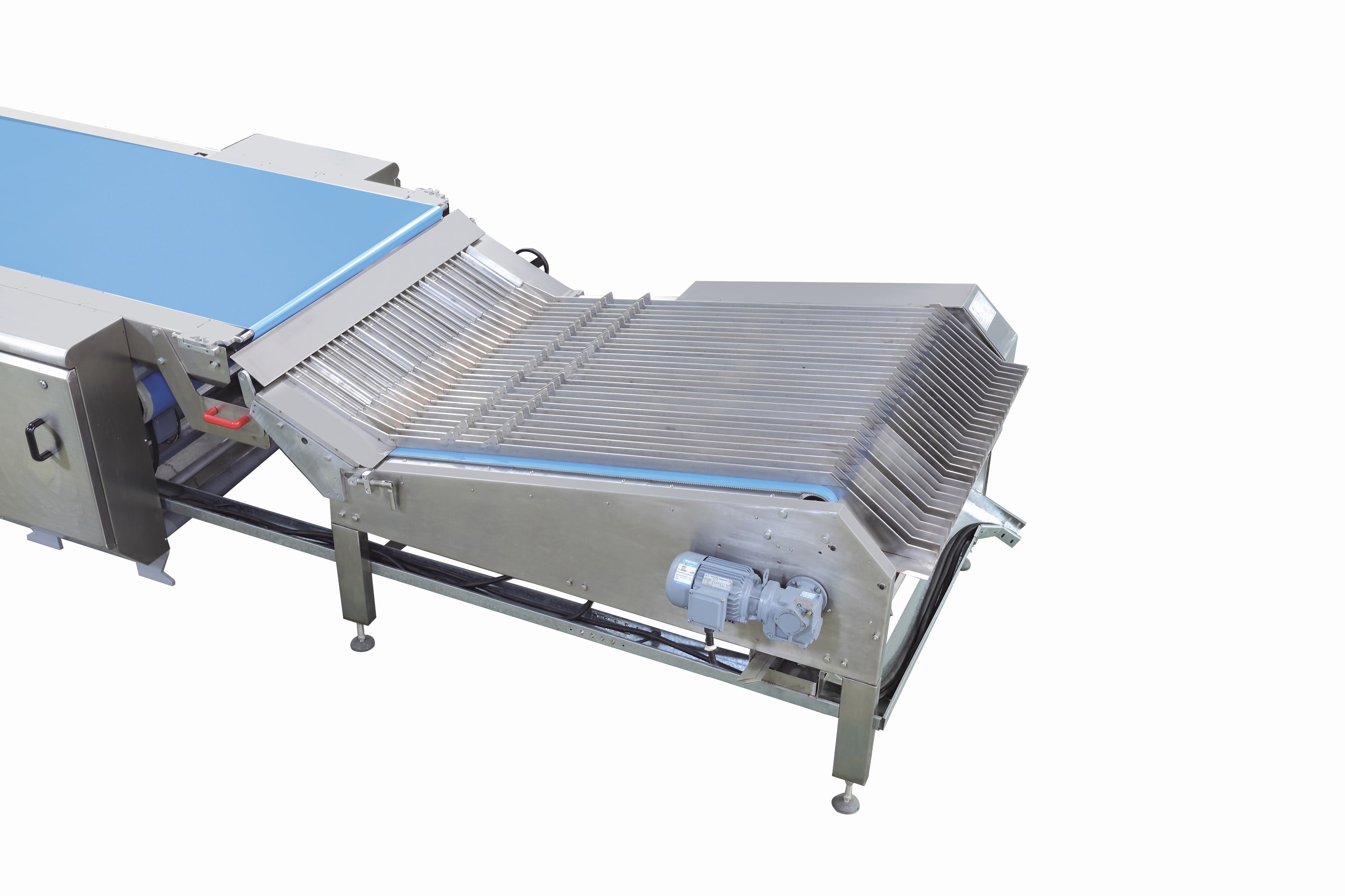

    180 Degree Turning Machine

    Width 800mm Bakery Biscuit Production Plant / Industrial Biscuit Machine 600kg/H

    Biscuit Stacker

    F. Biscuit Sandwich & Packing
    Width 800mm Bakery Biscuit Production Plant / Industrial Biscuit Machine 600kg/H
    Two lane creaming machine connect flow packing machine
    1. Two lane output sandwich biscuit about 1200pcs/min
    2. Independent frequency inverter control and adjust
    3. Siemens inverter and PLC touch screen and Schneider electric
    4. Delta servo motor and gearbox
    5. All pushers on creaming machine made by stainless steel
    6. Safety protection cover
    7. Waste collection cabinet
    8. Flow packing machine model SK-320, Bag size: Length 80-500mm, Width 35-145mm, Height 5-55mm
    9. Packing speed: 35-300 bags/min
    10. Packing type: 1x1,1x2,... 1x6 - 2x1, 2x2,...2x6
    More Details Please contact with us .
    Company Introduction
    Width 800mm Bakery Biscuit Production Plant / Industrial Biscuit Machine 600kg/H
    * SKYWIN Food Machinery Group Company was Founded in 2010,which is lotated in Beijiao,
    Shunde, Foshan, Guangdong, CHINA
    * Skywin Group Had 30 Years Experience Salers and Engineers in Biscuit Bakry Field.
    * Skywin Group has two factories, One is for Large Biscuit & Cookies & Wafer Production Line, One
    is for Automatic Biscuit Sandwiching Machine with Packing System.
    * We have more than 60 professional staffs to match delivery time, base on “International Quality,
    Competitive Price”.
