    Width 1200mm Siemens PLC Soft And Hard Biscuit Production Line

    Ask Lasest Price
    Brand Name : Skywinbake
    Certification : CE,ISO
    Supply Ability : 1 Set/Sets per Month
    Price : $600,000.00
    • Product Details
    • Company Profile

    Width 1200mm Siemens PLC Soft And Hard Biscuit Production Line

    Products Description
    Automatic Soft and Hard Biscuit Production Line Biscuit Cracker Machine
    A whole line consist of:
    1. Horizontal dough mixer, 250kg/batch, vertical dough mixer 500kg/batch
    2. Automatic dough tipper and feeding system
    3. Dough cutting&breaker
    4. Rotary cutter for hard biscuit formingRotary moulder for soft biscuit forming
    5. Salt/sugar spreading machine
    6. Tunnel oven, electric, indirect gas fried or hybrid gas oven for option, length depend on capacity.
    7. Oil spraying machine
    8. Turning machine 180degree or 90degree design as per the plant length
    9. Cooling conveyor
    10. Biscuit stacking machine (start wheel stacker or penny stacker)
    Width 1200mm Siemens PLC Soft And Hard Biscuit Production Line

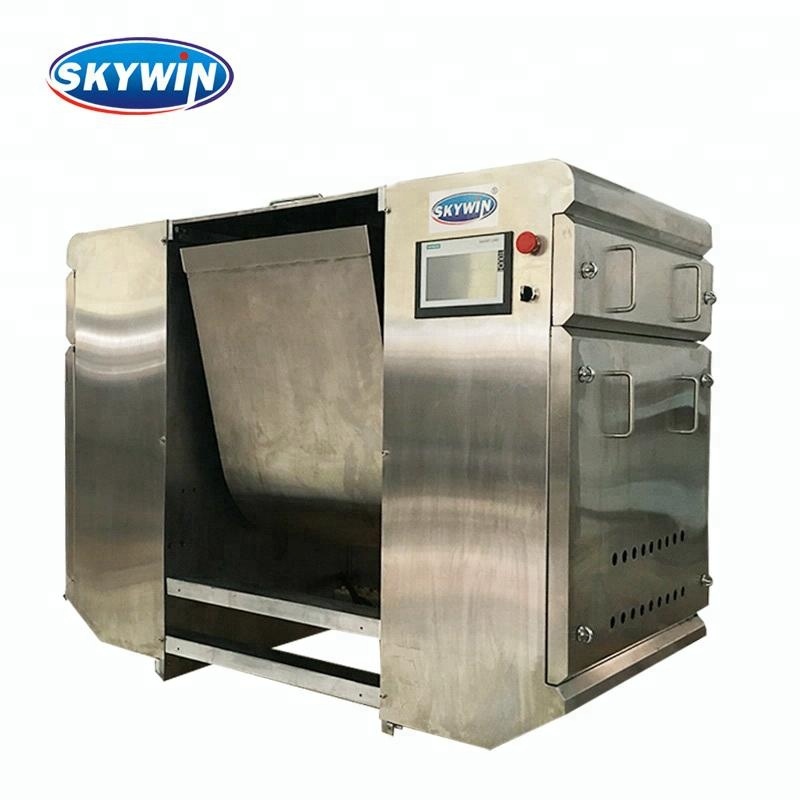

    Horizontal dough mixer
    This machine is used in dough mixing, it is suitable for hard biscuit and soft biscuit.The dough through mixing, dough surface will be good elasticity and smoothness.Its capacity including: 50kg,150kg,250kg,400kg,700kg. The mixing blade and bucket are made of 304SS,U-form bucket has temperature insulation function,simple operation and safety.
    Width 1200mm Siemens PLC Soft And Hard Biscuit Production Line
    Rotary cutter for hard biscuit forming
    When dough sheet go through rotary cutter machine,it will be cut and shaped by moulds.And the scrap will be conveyed to the hopper by recycle device after Separating.
    Width 1200mm Siemens PLC Soft And Hard Biscuit Production Line

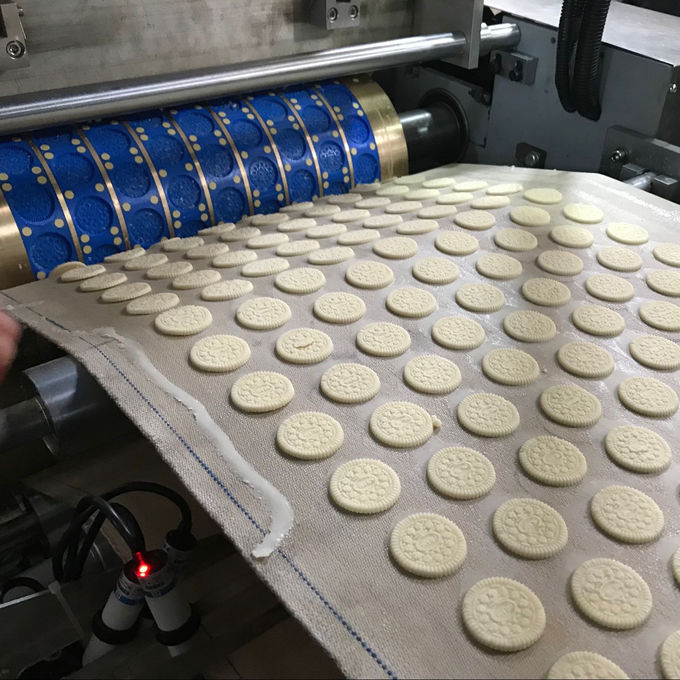

    Rotary moulder for soft biscuit forming
    Rotary moulder is used in making soft biscuit.
    After dough crushed by roller then go through moulder to forming.
    Width 1200mm Siemens PLC Soft And Hard Biscuit Production Line
    Tunnel oven
    Electric baking oven is used electricity as energy. It’s high efficiency, long usage, easy maintenance.
    Gas baking oven is used natural gas as energy. It’s more scientific and safe, high efficiency rapid heating, save enerdy, clean
    and simple operation.
    Biscuit stacking machine
    One is Star wheel structure, it is composed by transition conveyor, divided biscuits in order rows and stacking, total two conveyor belts.
    The other is Panny Biscuit stacker, usually it combined by 3 units of different speed conveyors, the speed from fast to slow,through discrepancy speed to make the biscuits lay down as lines, to easy transport to packaging machine
    Company Introduction
    Width 1200mm Siemens PLC Soft And Hard Biscuit Production Line
    SKYWIN Food Machinery Group Company was Founded in 2010,which is lotated in Beijiao, Shunde, Foshan, Guangdong, CHINA Foshan City is stainless steel Birthplace.
    Skywin Group has two factories, one is for Large Biscuit & Cookies & Wafer production line, one is for Automatic Biscuit sandwiching machine with Packing system. We have more than 60 professional staffs to match delivery time, base on “International Quality, Competitive Price”.
    After Sales Service
    Width 1200mm Siemens PLC Soft And Hard Biscuit Production Line
    Packing&Shipping
    Width 1200mm Siemens PLC Soft And Hard Biscuit Production Line
    Step 1: Mechanical surface coated with preservative solution (to protect stainless steel).
    Step 2: The plastic cushion packing machine (prevent bump).
    Step 3: Plastic film packaging (to prevent ventilation).
    Step 4: Wooden case / frame packaging (easy to transport).
    Step 5: Tie the bandage outside of the wooden case (reinforcement overall).
    Certifications
    Width 1200mm Siemens PLC Soft And Hard Biscuit Production Line
    Our machines was approve Certificate of CE certificate, Utility Model Utility Patents and Certificate of Design Patent. We obtained 12 National Patent, 8 for biscuit machine and 4 for sandwich biscuit machine connected packing system.
