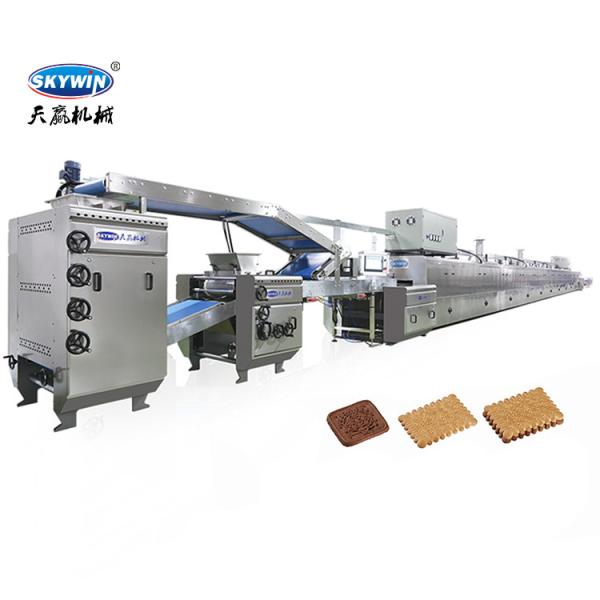

Fully Automatic Soft And Hard Biscuit Making Machine Line Biscuit
Production Line
Skywin Model 400/600 Mini Type Hard and Soft Biscuit Production
Line is suitable for producing different kinds of biscuits.
Different shape biscuit just need to change the mould, we also can
design mould for you as per your details.
A whole line consist of:
1. Horizontal dough mixer, 150-250kg/batch
2 .Automatic dough tipper and feeding system
3. Combination Dough Feeding & Sheeting(Including Pre-sheeter, Combined Gauge roll,
Separating machine, Scrap collection & return System .
4. Horizontal Biscuit Forming machine for Soft biscuit and Hard
biscuit
5. Tunnel oven, Electric Oven / Indirect Gas Oven for option, length is depend on capacity.
6. Turning machine 180degree or 90degree design as per the plant
length
7. Cooling conveyor
8. Biscuit stacking machine (start wheel stacker or penny stacker)
9. Packing table
10. Biscuit Sandwich Machine and Packing Machine
product details
Machine Component:
1. Chinese famous brand motor & gearbox
2. Penumatic cylinder for belt tension and deflecting adjustment
3. PU and Cotton belt
4. 304 Stainless steel cover, thickness 1.5-2.0mm
5. SIEMENS transducer electric and PLC touch screen control.
6. Guarantee for 1 year along with recommended spare parts for 1 year.
| Work Width(mm) & Length of Oven(30m) | Capacity(kg/Hr) |
| 400 | 100-200 |
| 600 | 200-400 |
Operation Workflow:
1.Horizontal Dough mixer(For Both Hard Dough and Soft dough)
Horizontal dough mixer for soft biscuit and hard biscuit dough
1) Speed from 25r/min to Max. Speed60r/min, frequency speed
2) SEW/Chinese Brand motor & gearbox
3) Full stainless steel 304#
4) with one Dough Tub capacity 150-500kgs
5) Tub thickness 5mm and 8mm
6) Newest design touch screen Siemens PLC control system
2. Combination Dough Feeding & Sheeting
Pre-sheeter & Combined Gauge roll
Combination dough feeding and Sheeting machine for hard biscuit
sheeting.
Dough sheeting thickness can be 1mm.
3.Separating machine, Scrap collection & return System
For hard biscuit making,after press the dough into a sheet and cut
the biscuit pattern, separate the scrap ,collect and return back to
Sheeter .
4. Horizontal Biscuit Forming machine
Two function biscuit forming machine for soft biscuit and hard
biscuit .
Different shape biscuit just need to change the mould, we also can
design mould for you as per your details
Soft Biscuit Forming
Hard Biscuit Forming
5.Biscuit Baking Tunnel Oven
Electric Tunnel oven
1) Oven body length 30M
2) 30M divided into 2 temperature chambers
3) Schneider inverter and PLC touch screen
4) Main motor and gearbox Germany Famous brand SEW
5) Main bearing NSK
6) Pneumatic automatic tracking and adjust belt and tension
7) Mesh belt width 400mm
8) Oven cover by 304# Stainless steel, 1.2mm
9) Heat resistant material: rock wool
Both side: 250mm thickness; Bottom 230mm thickness, top 350mm
thickness rock wool.
10) 3 set pneumatic tracking installed on enter oven, exit oven and
oven bottom
6.Turning Machine & Stacker
s
7. Biscuit Sandwich & Packing
Two lane creaming machine connect flow packing machine
1. Two lane output sandwich biscuit about 1200pcs/min
2. Independent frequency inverter control and adjust
3. Siemens inverter and PLC touch screen and Schneider electric
4. Delta servo motor and gearbox
5. All pushers on creaming machine made by stainless steel
6. Safety protection cover
7. Waste collection cabinet
8. Flow packing machine model SK-320, Bag size: Length 80-500mm,
Width 35-145mm, Height 5-55mm
9. Packing speed: 35-300 bags/min
10. Packing type: 1x1,1x2,... 1x6 - 2x1, 2x2,...2x6
Biscuit Sample & Mould
Factory & Shippment
- SKYWIN Food Machinery Group Company was Founded in 2010,which is lotated in Beijiao, Shunde, Foshan, Guangdong, CHINA
- Foshan City is stainless steel Birthplace.
- Skywin Group has two factories, One is for Large Biscuit & Cookies
& Wafer Production Line, One is for Automatic Biscuit Sandwiching
Machine with Packing System.
- We have more than 60 professional staffs to match delivery time,
base on “International Quality, Competitive Price”.
- We insist on:
Premium Quality Standards
High Value for Money
Lasting Partnership
Technical Monopoly Protect
After Sales Dependability
