Stainless Steel High Quality Advanced Hard & Soft Biscuit
Making Machine Price/Biscuit Production Line
Our line is specialized in top grade high quality soda cracker,
hard and soft biscuits.
It is full automatic ,save labor ,easy to operation ,high quality ,reasonable price to win
customer reply and reputation.
Different working width 400mm,620mm,800mm,1000mm and 1200mm for
different capacity
for your option. Capacity from 100-1500kg per hour.
Full automatic small biscuit macking machine is produce all kinds
of soft and hard biscuit.
Special shape of biscuit just change the mould. We also can design the mould for you as per your details.
More biscuit samples for your reference.
A whole line consist of:
1.Horizontal dough mixer, 250kg/batch, vertical dough mixer
500kg/batch
2.Automatic dough tipper and feeding system
3.Three-roll combination sheeter for feeding and sheeting dough
4.Laminator for overlapping dough to sheeting on gauge rolls,
included cream
spreading machine.
5.Gauge rolls
6.Rotary cutting machine for hard biscuit forming
7.Scrap collection and return system
8.Rotary moulder for soft biscuit forming
9.Salt/sugar spreading machine
10.Tunnel oven, electric, indirect gas fried or hybrid gas oven for
option, length is
depend on capacity.
11.Oil spraying machine
12.Turning machine 180degree or 90degree design as per the plant
length
14.Cooling conveyor

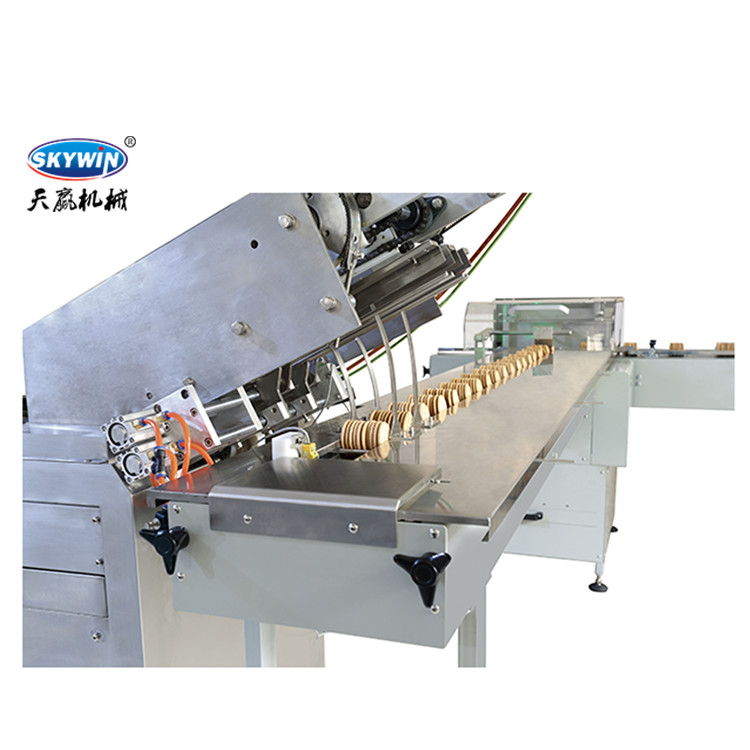

14.Biscuit stacking machine (start wheel stacker or penny stacker)
15.Packing table
product details
Automatic Biscuit Making Machine
Electric component
Chinese motor & gearbox (NSK for your choose)
SIEMENS PLC, inverter
ZWZ bearing Chinese
AIRTA air-cylinder
Cotton and PU conveyor belt 1.5-1.8mm
Wire mesh belt V type
Plates covered hard chrome, thickness 18mm
Stainless steel thickness 1.5-2mm
Dough mixer
Using for mixing the dough,
Capacity:100-550kg/batch (HM-250)
Suitable for mixing flour dough for biscuit and cake production,
cream mixing and etc.
Special for hard and soft biscuit dough, Twin direction spiral
mixing Steel blade
Rotary cutter:
Using to form the biscuit into different shape.Different shape of
the biscuit just
need to change the mould.
Rotary Moulder
For soft biscuit making, like glucose biscuit and oreo biscuit...
Electric or gas oven:
Two type for option,gas or electric.Using for baking the biscuit.

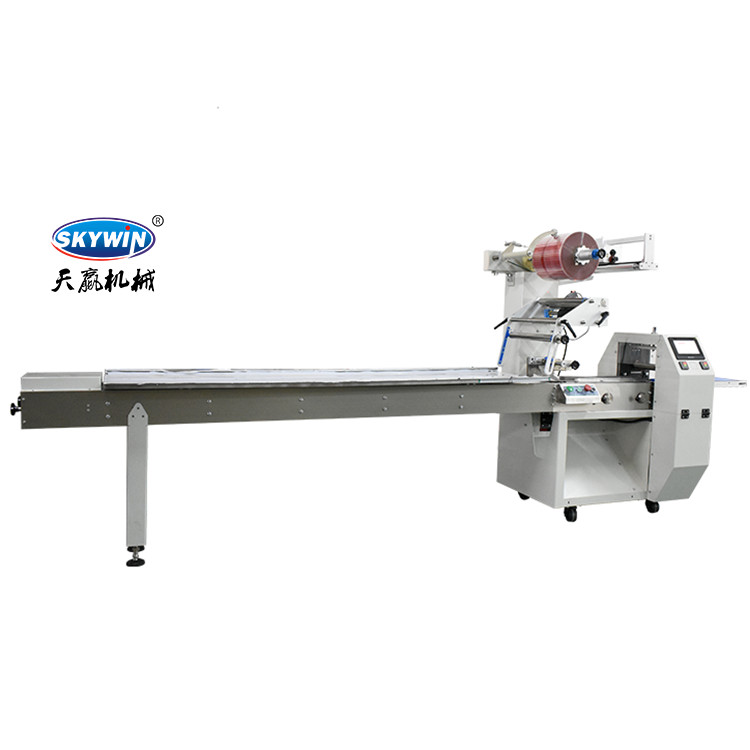

Packing: flow and on edge packing style
Company Information
Skywin Machinery was established since 2010. Our work experience range from the biscuit production line to automatic packaging machine.
Skywin is proud indeed that every machine conforms to the standard of quality. And we believe that top
quality can only be achieved by exercising total integration at
every stage from studying the design, planning, construction and
maintenance.
Skywin rapid growth is contributed by the ever growing trust that client
have extended. With supportive and dedicated human resources, our
full potential is realized in each machine. At Skywin, the philosophy is quite simple.
We believe in delivering the value of the client's investment
before securing ourselves as reliable partner. We will not rest on our laurels but will continue to grow and adapt to the rapidly changing
business environment, investing unsparingly in the quality of its
human resources and civil engineering technology in accordance with
the ISO 9001 quality standard.
♥Looking Forward To Your Specific Inquires.♥
