Semi-Automatic Tray Type Hard And Soft Biscuit Production Line
Model-400 Tray Type biscuit machine is a high-speed automatic equipment will form biscuit from wheat dough into dough biscuit, biscuit machine suitable for rectangular biscuit,square and round, animal shape and other shapes depends on biscuit mould.The machine can reduce labor costs and waste, increase production, efficiency, quality and flexibility.
Use: | Making soft and hard biscuits |
Layout: | Available and customized |
Material: | Mainly 304 stainless steel |
Warranty: | 12 months |
OEM: | Available |
Automatic: | SIEMENS PLC control |
Brand: | Skywin |
Transducer: | SIEMENS Transducer |
Bearing: | Main bearing are Chinese famous brand,other small use NSK |
Air cylinder: | AirTAC |
1. Horizontal dough mixer
Oar material | stainless steel |
Stirring speed | 25 rpm ,Max speed 60r/min |
Capacity | 150 kg / batch |
Mixing time | 5-25 minutes / time |
Motor | China famous quality Motor and Gear-box |

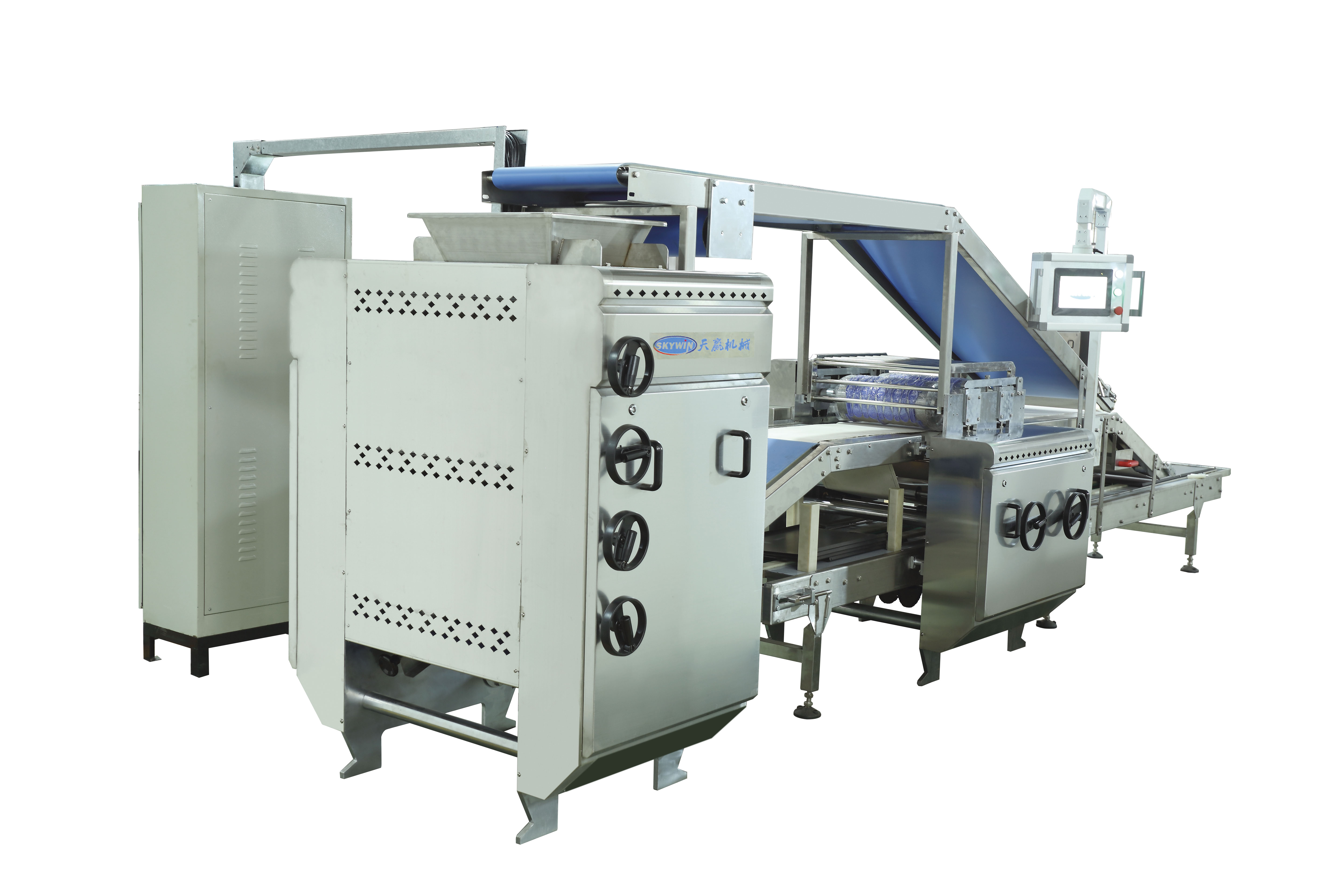

2. Hard and soft biscuit forming part
Designed for forming soft and hard biscuit, with the changeable moulds.
Separated motors control the mould and conveyor belt.
This picture shows for hard biscuit making, with belt automatic checking device.
This picture shows for soft biscuit making, with belt automatically adjust device.
3.Separating and Scrap side return system
Function:Separate scraper and forming biscuit
1.Food grade PU conveyor belt with guides groove
2.Full 304 stainless steel frame
3.Pneumatic device automatic tracking and tension
4.Siemens inverter and PLC touch screen
5.Chinese famous brand motor and gearbox
4.Rack Oven (Gas or electric Rotary Oven)
Power | 380V, 50Hz, 3 phase, 3.5kW |
Oven Size | 1820*2600*2450mm |
Trays Size | suitable to use 400x600mm (32 pcs) trays |
Material | Full stainless steel body SS#430, outside thickness 1.2mm, chamber thickness 1.5mm |
Optional funtion | Steam Function |
Total weight | 850kg |

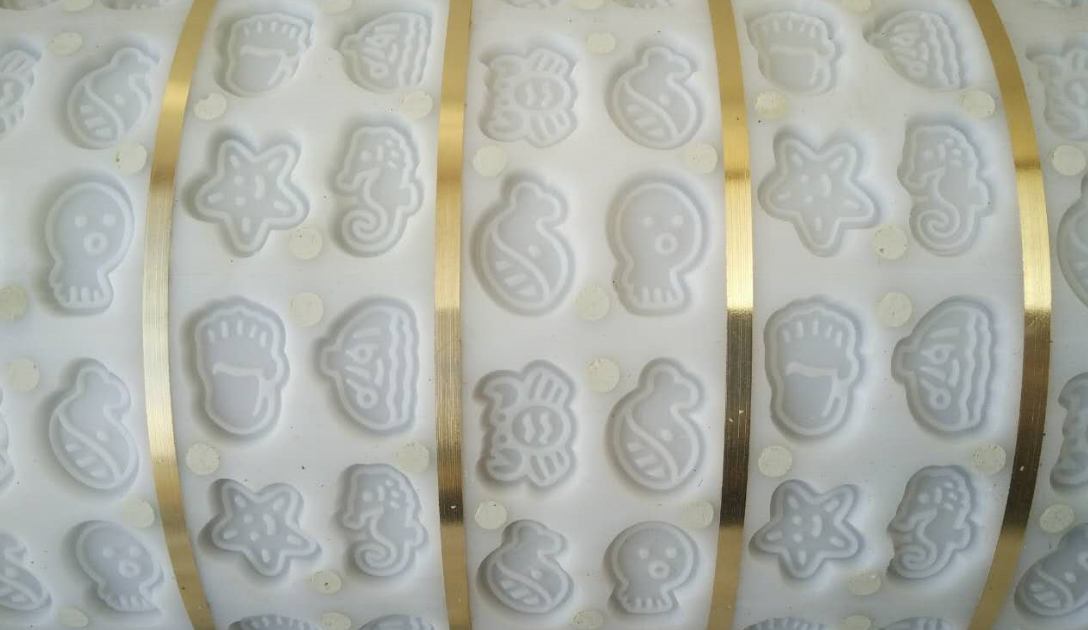

5.Biscuit mould
Biscuit Sample & Mould
Click the production which you are interested in ~~
Let's jump to another page to learn about them.
Tray Type PLC Cookie Machine Hard and Soft Biscuit Production Line Sandwich Connect Packing Machine
Wafer Production Line Horizontal Dough Mixer Rotary Moulder for Soft Biscuit Making
Step | Process |
Step 1 | Mechanical surface coated with preservative solution (to protect stainless steel). |
Step 2 | The plastic cushion packing machine (prevent bump). |
Step 3 | Plastic film packaging (to prevent ventilation). |
Step 4 | Wooden case / frame packaging (easy to transport). |
Step 5 | Tie the bandage outside of the wooden case (reinforcement overall). |
![]() |
