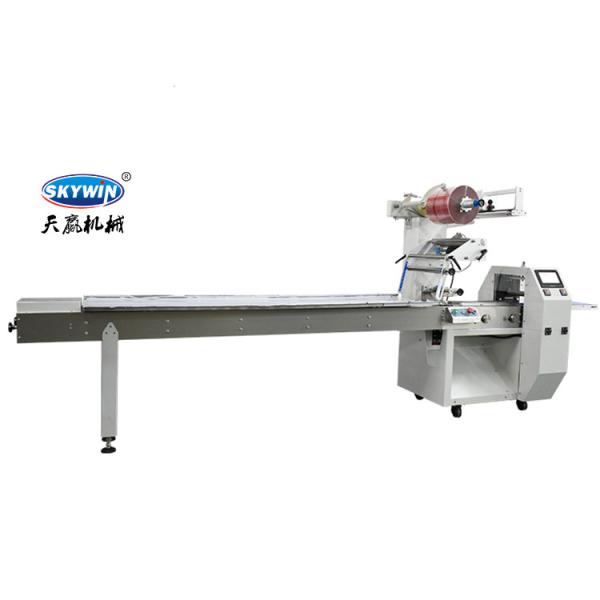

SK-380S Flow Packing Machine

1.Machine Details

★ 3 Servo Motors.

★ High sensitivity photoelectric eye color tracking, automatic detection and input of bag length.

★ Bag length can be set and cut in one step ,saving time and film.

★ Temperature independent PID control, suitable for a variety of packaging materials, sealing beautiful and firm.

★ Adopt the inclined material frame, easy to clean the food slag.

★ Simple and orderly circuit installation, sealed electric control box, effective protection of wire and circuit.

★ Simple driving system,reliable working ,convenient maintenance.

No.	Machine parameter	Data
1	Packing Speed	50--- 300packs/minute
2	Bag size (L x W x H)	(80-300) x (35-145) x (5-55)mm
3	Max width of the packing film	380mm
4	Thickness of Packing film	0.04-0.07mm
5	Machine dimension (L x W x H)	5200 x 950 x 1650mm
6	Power consumption	3.6KW
7	Single phase	220V/50Hz

2.Machine Parts

Feeding conveyor: Worker manual to put product on feeding conveyor, product will go through to film directly.

Bag make device: Articulated bag former strurcute and enble stable bag foming for perfect bag shape.

Rotary end sealing device: The cutters can do link bag, flat end sea or the round whole for difference products.

Temperature controller: Separate PID temperature controller suitable for various packing material.

3.Packing Sample
