30 To 120Packs/Minute Automatic Packaging Machine For Cookies / Wafer / Biscuit

Product Categories

Skywin Foodstuff Machinery Co., Ltd.

Contact Now

Biscuit

Ask Lasest Price
Brand Name :	Skywin
Certification :	CE ISO
Supply Ability :	3 Set/Sets per Quarter wafer biscuit making production line
Price :	$24,500.00 - $41,500.00 / Set

Add to Cart

Product Details
Company Profile

30 To 120Packs/Minute Automatic Packaging Machine For Cookies / Wafer / Biscuit

Product Description

On Edge Trayless Packing Machine

* Design of mechanical structure is simple and reasonable, convenient to operate and adjust
* Design of mechanical structure is simple
* Long seal device consists of three pairs of draw wheels, ensures high speed, stable and beautiful sealing

* Special tray-free tubing conveyance mechanism, stable and reliable

* Elaborate automatic feeding device able to take the packing items into the machine accurately
* Packing size can be adjusted easily and quickly
* Electrical features:
* Adopts PC control, reduces the mechanical contacting points and makes the system more stable and reliable
* Frequency control makes the operation easy and simple
* Adopts photoelectric sensor to test the color mark, non-contact control, two-way tracing

30 To 120Packs/Minute Automatic Packaging Machine For Cookies / Wafer / Biscuit

1. All fence plates, support plates, cover and touch parts of biscuits make by SUS304 Stainless steel.
2. SMC air cylinder and electromagnetic valve etc.
3. Panasonnic servo motor and drivers
4. Panasonnic transducer, PLC, touch screen, coder, schneider circuit breaker, AC contactor, ORMON photoelectric switch.

Specification (QWZ360 3-SERVO)

1.Three-servo controlled, it is can store various size biscuit packet, if you want to adjust the pack size, you can input size and easy to operate by PLC touch screen.

2.Applications: Suitable for packing several pieces of biscuits into one package without tray,
Applicable for biscuits of square, round, oval and other shapes

3.Packing materials: Any heat-melt-cut sealing materials such as paper, PE, OPP and AL/PE and etc…

4.Capacity: 30 to 120 packs/minute

5.Bag size: Length 100-240mm, Width 30 to 90mm, Height 30 to 80mm
Floor space (L x W): 4250 x 1155mm
Feeding section (L x W): 3,100 x 580mm

6.Power consumption: 5.2KW, Single phase: 220V/50Hz

7.Net weight: 1,500kg

Skywin Comb Hard and Soft Biscuit Automatic Small Biscuit Making Machine

Industrial Electric Bakery Tunnel Oven For Biscuit Gas Tunnel Oven

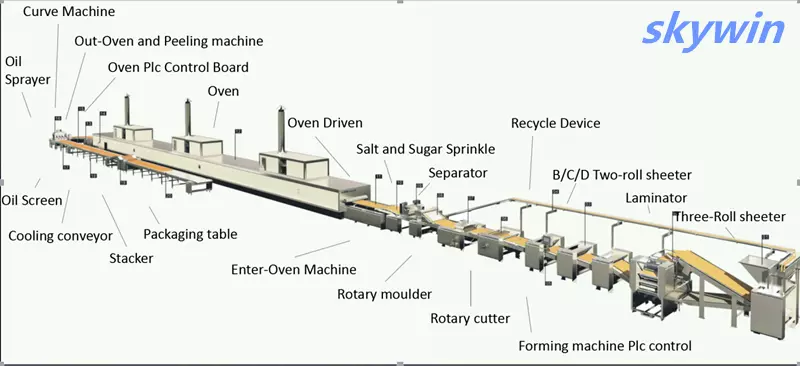

A whole line consist of:

· 1.Horizontal dough mixer
· 2.Automatic dough tipper and feeding system
· 3.Three-roll combination sheeter for feeding and sheeting dough
· 4.Laminator for overlapping dough to sheeting on gauge rolls, included cream spreading machine.
· 5.Gauge rolls
· 6.Rotary cutting machine for hard biscuit forming
· 7.Scrap collection and return system
· 8.Rotary moulder for soft biscuit forming
· 9.Salt/sugar spreading machine
· 10.Tunnel oven, electric, indirect gas fried or hybrid gas oven for option, length cis depend on capacity.
· 11.Oil spraying machine
· 12.Turning machine 180degree or 90degree design as per the plant length
· 14.Cooling conveyor
· 14.Biscuit stacking machine (start wheel stacker or penny stacker)

Company Profile

Skywin Foodstuff Machinery Co., Ltd. was established in 1983 and is a manufacturer specialized in the fully automatic high quality Biscuit Production Lines and Cookie Production Lines. We provide One-stop solution and service from biscuit production to biscuit sandwiching, biscuit chocolate enrobing and biscuit packing. All operation is fully automatic PLC controlled. We will supply professional consulting services for machines used in the industry of biscuit production, as well as the most suitable design proposals and quality machines. Perfect Solution of Biscuit Production & One-stop Procurement Service: Biscuit production lines Biscuit sandwiching and automatic connection packaging machines Biscuit coating chocolate machines Biscuit packing solutions Cookies production lines Wafer biscuit production lines Proposal Design: The most appropriate solution will be supplied based on plants' requirements, production capacity, automation and cost efficiency. Selecting & Purchasing According to the requirements for automation and quality, equipment of best performance (domestically) and the highest performance-price ratio will be supplied to customers. Erection & Commissioning: Our processional technicians, quick responses and optimum service attitude can help finish the installation in a short time. After-sales service: Professional engineers provide the best service, Maintenance of the equipment and the production of biscuits. Technical Support: Provide the technical support according to the customers' requirement. Start great business now! We are looking forward to providing excellent service for your esteem company.

After Sales Service

Packing&Shipping

Step 1: Mechanical surface coated with preservative solution (to protect stainless steel).
Step 2: The plastic cushion packing machine (prevent bump).
Step 3: Plastic film packaging (to prevent ventilation).
Step 4: Wooden case / frame packaging (easy to transport).
Step 5: Tie the bandage outside of the wooden case (reinforcement overall).
