Automatic Biscuit Cookie Production Line,Wire-cut Cookie making
machine, Cookie depositor,Biscuit Making Machine
Related Products
Model-600/800/1000/1200 Wire-Cut&Deposit Cookies Making Machine
Hello Panda Biscuit Injection Machine/Golden Bear Biscuit Machine
Cream/Chocolate/Cheese/Jam Biscuit Sandwiching Machine

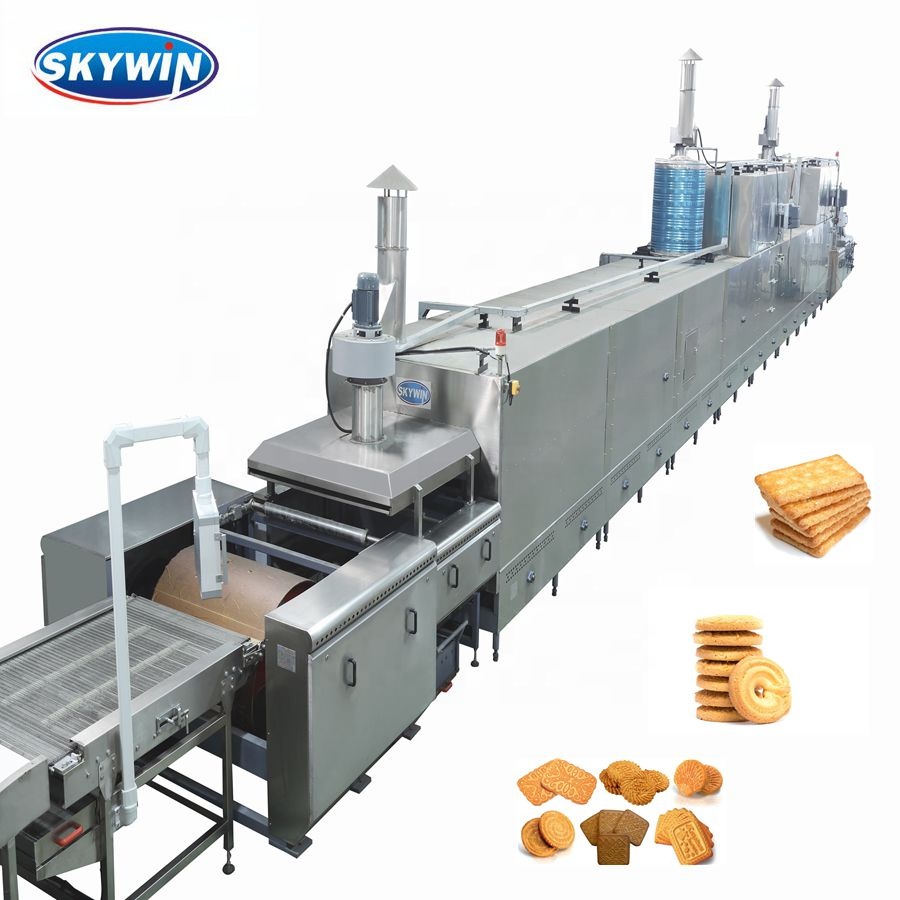

Hard and Soft Biscuit Production Line
Multifunctional hard and soft biscuit production line is available
for all kinds of hard and soft biscuits, different shape biscuit
just need to change the mould ,we also can design mould for you as
per your details
Our line is specialized in top grade high quality soda cracker,
hard and soft biscuits.It is full automatic ,save labor ,easy to
operation ,high quality ,reasonable price to win customer reply and
reputation
Different working width 400mm,620mm,800mm,1000mm and 1200mm for
different capacity for your option
Electric component
Siemens Brand PLC&Touch Screen Controlled system, Siemens Brand
Eletric componnents or Scheider Brand, Chinese Famous Quality Brand
GUOTAI Motors&Gearbox; AirTAC brand Penumatic cylinder for belt
tension and deflecting adjustment
Cotton and PU conveyor belt 1.5-1.8mm
Wire mesh belt V type
Plates covered hard chrome, thickness 18mm
Stainless steel thickness 1.5-2mm
A whole line consist of:
1.Horizontal dough mixer, 250kg/batch, vertical dough mixer
500kg/batch
2.Automatic dough tipper and feeding system
3.Three-roll combination sheeter for feeding and sheeting dough
4.Laminator for overlapping dough to sheeting on gauge rolls,
included cream spreading machine.
5.Gauge rolls
6.Rotary cutting machine for hard biscuit forming
7.Scrap collection and return system
8.Rotary moulder for soft biscuit forming
9.Salt/sugar spreading machine
10.Tunnel oven, electric, indirect gas fried or hybrid gas oven for
option, length cis depend on capacity.
11.Oil spraying machine
12.Turning machine 180degree or 90degree design as per the plant
length
14.Cooling conveyor
14.Biscuit stacking machine (start wheel stacker or penny stacker)
15.Packing table
Salt sugar spreader
To make different flavor biscuit , spread sugar or salt on biscuit
,make biscuit more delicious
Spraying materials: salt, sugar, sesame, nut etc. Spraying capacity
controlled by transducer.
Spraying by brush. Brush and conveyor belt controlled by different
motor, easy to adjusted, conveyor roll made by stainless steel.
Separating machine and return system
Double driver structure, use for hard biscuit separate from scrap
dough automatically. PU conveyor belt
Automatic Air pneumatic separate device, Up and Down controlled by
separate motor
Hard scrap dough return device to collect scrap hard dough and feed
to three-roll combination sheeter
Remaining scrap dough automatic transport and over feeding by Air
pneumatic.
Feeding entrance has installed one scrap shuttle device to mix
scrap and new dough.

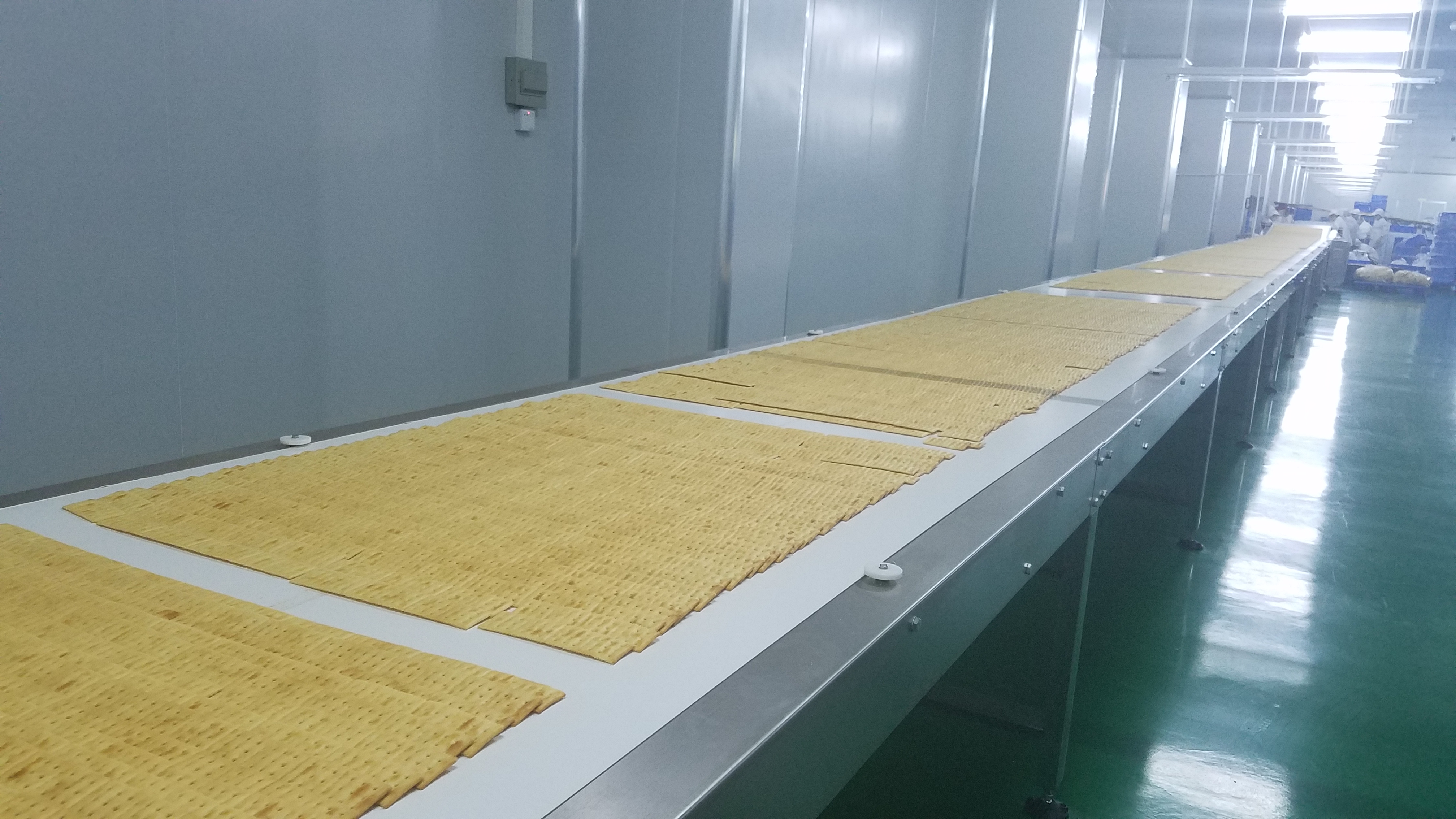

Cooling machine
Natural air cooling by PU conveyor belt, PU belt thickness 1mm

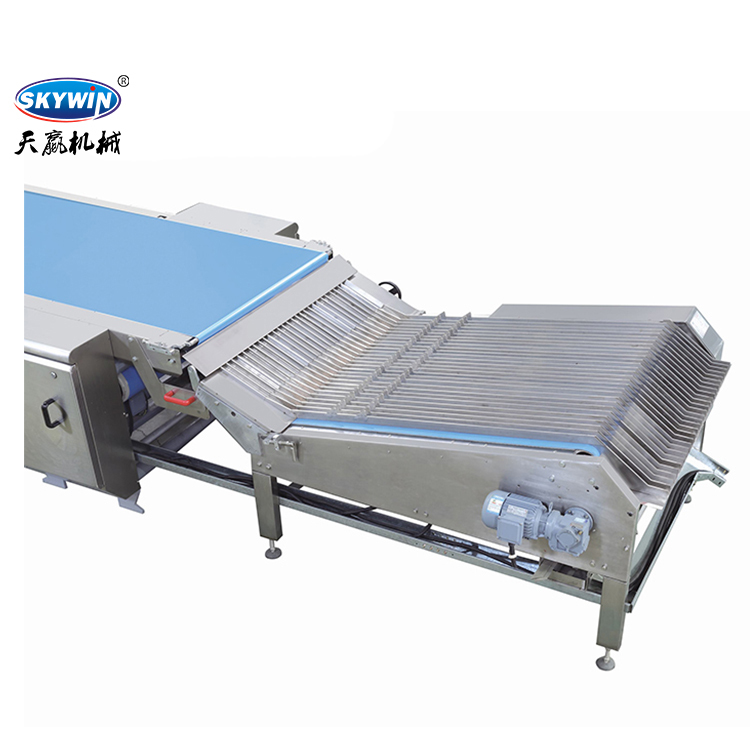

Stacker machine
Multifunction biscuit stacker , start wheel or speed stacking .PU
conveyor belt 1mm thickness .
Star wheels stacking structure, composed by transition conveyor,
divided biscuits in order rows and stacking, total two conveyor
belts.
Stacking by star wheels, conveyor belt controlled by separately
motor, easy to adjusted, rubber covered main drive roll.
