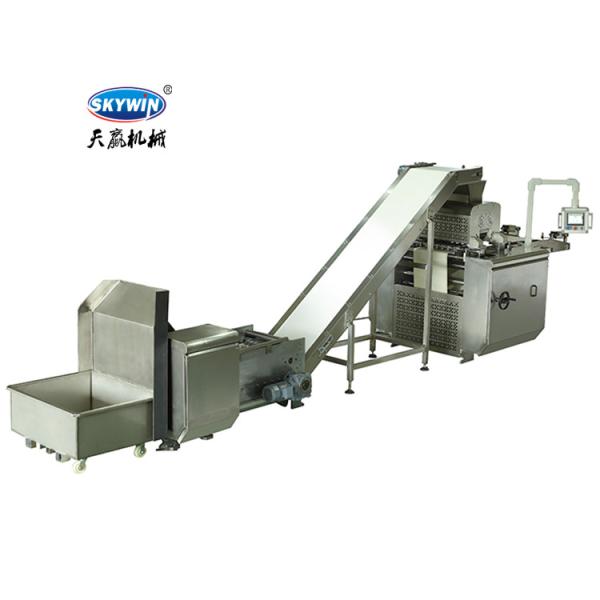

Full Automatic 1000mm 1200mm Width Wire Cut Cookie Depositor

Product Description

Wire Cut And Deposit Cookies Forming Machine

There are three types of cookies forming machine for option.(Wire cut machine/deposit machine/wire cut and deposit forming machine)
Belt width 600mm, Installed on Steel band

Different shapes of biscuits can be finished by changing mould.
Opotional cookie machine width: 620,800,1000,1200mm
Cookie machine width also can be choosen according to your biscuit capacity.

Full Automatic 1000mm 1200mm Width Wire Cut Cookie Depositor

1.SEW Motors & gearbox from Germany
2.NSK bearing
3.AirTAC Penumatic cylinder for belt tension and deflecting adjustment
4.PU and Cotton belt
5.304 Stainless steel cover, thickness 1.5-2.0mm
6.SIEMENS transducer electric and PLC touch screen control.

Specification

Deposit cookies machine

1. 304 Stainless steel Cover, thickness 1.5mm
2. Feeding rollerdiameter 160mm, with groove
3. Installed on Steel band width 1000mm
4. Dynamic structure, total 5 servo motor control. Feeding roller motor 2kw, cookies deposit 3kw, Rotation 1kw, up and down
moving 2kw, front and back moving 2kw.
5. Provided two sets of cookies moulds.
6. Dimension: 1900 x 1100 x 1800mm (L x W x H)
7. Capacity: Deposit 300-400kg per hour
8. Speed: Deposit 40-60times/min
9. SIEMENS electric parts and PLC touch screen control
10. TAIDA servo motor & gearbox

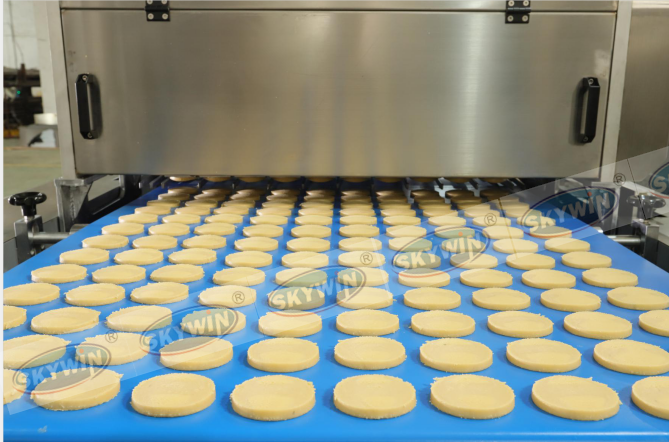

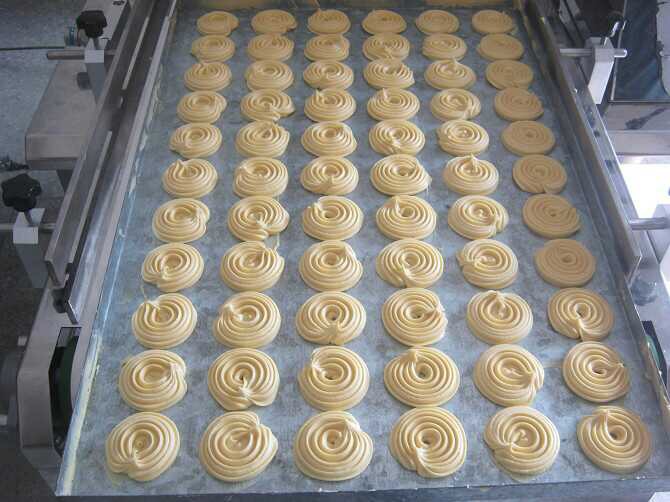

deposit biscuit sample deposit cookies forming machine

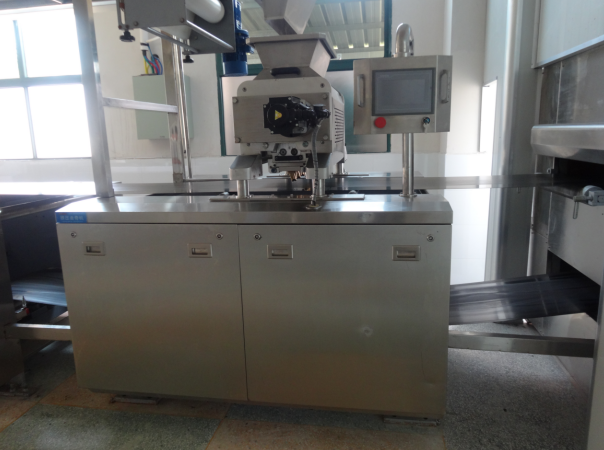

Wire cut cookies forming machine

1. 304 Stainless steel Cover, thickness 1.5mm
2. Feeding rollerdiameter 160mm, with groove
3. Installed on Steel band width 1000mm
4. Dynamic structure, total 2 servo motor control. Feeding roller motor 2kw, wire cut forming 2kw.
5. Provided two sets of cookies moulds.
6. Dimension: 1900 x 1100 x 1800mm (L x W x H)
7. Capacity: Wire cut400-500kg per hour
8. Speed: Cut 80-100times/min
9. SIEMENS electric parts and PLC touch screen control
10. TAIDA servo motor & gearbox

A whole line consist of:

· 1.Horizontal dough mixer
· 2.Automatic dough tipper and feeding system
· 3.Three-roll combination sheeter for feeding and sheeting dough
· 4.Laminator for overlapping dough to sheeting on gauge rolls, included cream spreading machine.
· 5.Gauge rolls
· 6.Rotary cutting machine for hard biscuit forming
· 7.Scrap collection and return system
· 8.Rotary moulder for soft biscuit forming
· 9.Salt/sugar spreading machine
· 10.Tunnel oven, electric, indirect gas fried or hybrid gas oven for option, length cis depend on capacity.
· 11.Oil spraying machine
· 12.Turning machine 180degree or 90degree design as per the plant length
· 14.Cooling conveyor
· 14.Biscuit stacking machine (start wheel stacker or penny stacker)

Company Profile

Skywin Foodstuff Machinery Co., Ltd. was established in 1983 and is a manufacturer specialized in the fully automatic high quality Biscuit Production Lines and Cookie Production Lines. We provide One-stop solution and service from biscuit production to biscuit sandwiching, biscuit chocolate enrobing and biscuit packing. All operation is fully automatic PLC controlled. We will supply professional consulting services for machines used in the industry of biscuit production, as well as the most suitable design proposals and quality machines. Perfect Solution of Biscuit Production & One-stop Procurement Service: Biscuit production lines Biscuit sandwiching and automatic connection packaging machines Biscuit coating chocolate machines Biscuit packing solutions Cookies production lines Wafer biscuit production lines Proposal Design: The most appropriate solution will be supplied based on plants' requirements, production capacity, automation and cost efficiency. Selecting & Purchasing According to the requirements for automation and quality, equipment of best performance (domestically) and the highest performance-price ratio will be supplied to customers. Erection & Commissioning: Our processional technicians, quick responses and optimum service attitude can help finish the installation in a short time. After-sales service: Professional engineers provide the best service, Maintenance of the equipment and the production of biscuits. Technical Support: Provide the technical support according to the customers' requirement. Start great business now! We are looking forward to providing excellent service for your esteem company.

After Sales Service

Packing&Shipping

Step 1: Mechanical surface coated with preservative solution (to protect stainless steel).
Step 2: The plastic cushion packing machine (prevent bump).
Step 3: Plastic film packaging (to prevent ventilation).
Step 4: Wooden case / frame packaging (easy to transport).
Step 5: Tie the bandage outside of the wooden case (reinforcement overall).
