Hot sales Manufacture Tray Type Hard And Soft Small Biscuit Forming Machine Rotary Molder Cutter Machine Factory Price

Product Description

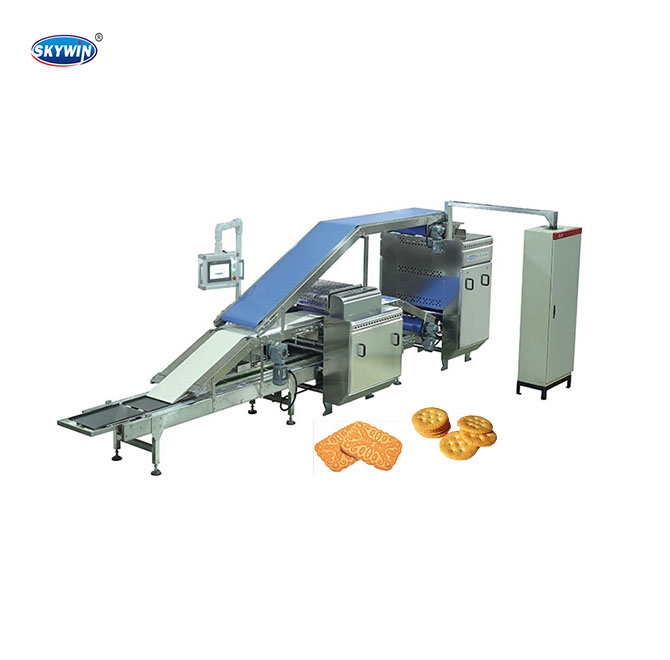

Model-400 Tray Type Hard Biscuit Machine

Hot sales Manufacture Tray Type Hard And Soft Small Biscuit Forming Machine Rotary Molder Cutter Machine Factory Price

Model-400 Tray Type hard biscuit machine is a high-speed automatic equipment will form biscuit from wheat dough into dough biscuit, biscuit machine suitable for rectangular biscuit,square and round, animal shape and other shapes depends on biscuit mould.The machine can reduce labor costs and waste, increase production, efficiency, quality and flexibility.

Specification

Technical Specification:

1.Flexible structure: with a series of quick-change biscuit molds device,can produce different shapes of biscuits

2. With automatic loading and belt centering adjustment device. Ensure the automatic alignment of pallets and canvas;

3 .Adopt 304 stainless steel, chromed plated treatment, to meet food hygiene requirements.

4. The machine is using frequency converters, Siemens brand PLC&touch screen control system,and other electrical components, mechanical stability and durability;

5.Machine control by Siemens Touch screen, easy to operate, no downtime at any speed will not be affected.

6.The machine is easy to clean and maintenance, waste collection pan for automatic collection of waste materials, avoid waste.

STEP 1:

Horizontal Dough Mixer

Mixing method: horizontal mixing;
Oar material: stainless steel
Stirring speed, 25 rpm ,Max speed 60r/min
Capacity: 150 kg / batch
Mixing time :5-25 minutes / time
Tub thickness: 5MM stainless steel plate.
Motor: China famous quality Motor and Gear-box
Total power: 6.25kw

STEP 2:

Model-400 Tray Type hard biscuit machine

capacity:about 50kgs/hour~150kgs/hour
* Working width 40
* Tray size: W400 x L600mm
* Double motor driver, Chain driverfor dough feeding and moulding,more stronger.
* Stainless steel 304#cover thickness 1.0mm
* Frequency speed adjusted, Siemensbrand PLC&Touch Screen.
* Food standard Rubber roller diameter 200mm ,endless canvas conveyor.Ø
* Belts support by stainless steel 304# 3mm

thickness.
* With pan holding space and pan longer transport conveyor
* With flexible waste dough collection pans, easier cleaning.
* Traydelivery Max speed:16 trays
* Max Automatic loadingspeed:10 trays
* Voltage:Power: 4.5kw,380V/50Hz
* Power:6. 3kw
* Gross Weight:1800kg

◁ Twin rotary cutter (can change rotary moulder)

This picture shows for hard biscuit making, with belt automatic checking device.
Dough sheeting thickness can be 1mm.

Sample

Recommend Products

Automatic Industrial Cracker / Bear/ Soft Biscuit Making Machine

Skywin Comb Hard and Soft Biscuit Automatic Small Biscuit Making Machine

Industrial Electric Bakery Tunnel Oven For Biscuit Gas Tunnel Oven

Company Profile

Skywin Foodstuff Machinery Co., Ltd. was established in 1983 and is a manufacturer specialized in the fully automatic high quality Biscuit Production Lines and Cookie Production Lines. We provide One-stop solution and service from biscuit production to biscuit sandwiching, biscuit chocolate enrobing and biscuit packing. All operation is fully automatic PLC controlled. We will supply professional consulting services for machines used in the industry of biscuit production, as well as the most suitable design proposals and quality machines. Perfect Solution of Biscuit Production & One-stop Procurement Service: Biscuit production lines Biscuit sandwiching and automatic connection packaging machines Biscuit coating chocolate machines Biscuit packing solutions Cookies production lines Wafer biscuit production lines Proposal Design: The most appropriate solution will be supplied based on plants' requirements, production capacity, automation and cost efficiency. Selecting & Purchasing According to the requirements for automation and quality, equipment of best performance (domestically) and the highest performance-price ratio will be supplied to customers. Erection & Commissioning: Our processional technicians, quick responses and optimum service attitude can help finish the installation in a short time. After-sales service: Professional engineers provide the best service, Maintenance of the equipment and the production of biscuits. Technical Support: Provide the technical support according to the customers' requirement. Start great business now! We are looking forward to providing excellent service for your esteem company.

After Sales Service

Packing&Shipping

Step 1: Mechanical surface coated with preservative solution (to protect stainless steel).
Step 2: The plastic cushion packing machine (prevent bump).
Step 3: Plastic film packaging (to prevent ventilation).
Step 4: Wooden case / frame packaging (easy to transport).
Step 5: Tie the bandage outside of the wooden case (reinforcement overall).
