Skywin Tray Type Combine Hard and Soft Biscuit Making Machines
Model-400 Tray Type Hard and Soft biscuit machine is a high-speed automatic equipment will form biscuit from wheat dough into dough biscuit,
biscuit machine suitable for rectangular biscuit,square and round,
animal shape and other shapes depends on biscuit mould.The machine
can reduce labor costs and waste, increase production, efficiency,
quality and flexibility.
Technical Specification
| Use | Making hard and soft biscuits |
| Layout | Available and customized |
| Material | Mainly 304 stainless steel |
| Automatic | Siemens PLC control |
| Bearing | Main bearing are Chinese brand,other small use NSK |
| Air cylinder | AirTAC |
| Warranty | 12 months |
1.Flexible structure: with a series of quick-change biscuit molds device,can produce
different shapes of biscuits.
2. With automatic loading and belt centering adjustment device. Ensure the automatic alignment of pallets and canvas;
3 .Adopt 304 stainless steel, chromed plated treatment, to meet
food hygiene requirements.
4. The machine is using frequency converters,
5.Machine control by Siemens Touch screen, easy to operate, no
downtime at any speed will not be affected.
6.The machine is easy to clean and maintenance, collection pan for
collecting waste materials, avoid waste.
A whole making line consist of:
1. 150kg dough mixer
2. Combined Hard biscuit sheeting machine
3. Tray type Hard & Soft biscuit Combined Forming Machine
4. Separating machine
5. Scrap collection & return System
Detailed Images
150kgs Horizontal dough mixer
Function: Mix the dough
Features: After mixing, dough’s surface would be smooth, flexible
and extensible.
1. Suitable for soft and hard biscuit dough
2. Bucket: U-form
3. Blade: S-form, frequency control Max. Speed 60 r/min
4. Mixing blade is 304 Stainless steel
5. Bowl covered by 304 Stainless steel
6. Tipping by Hydraulic pressure

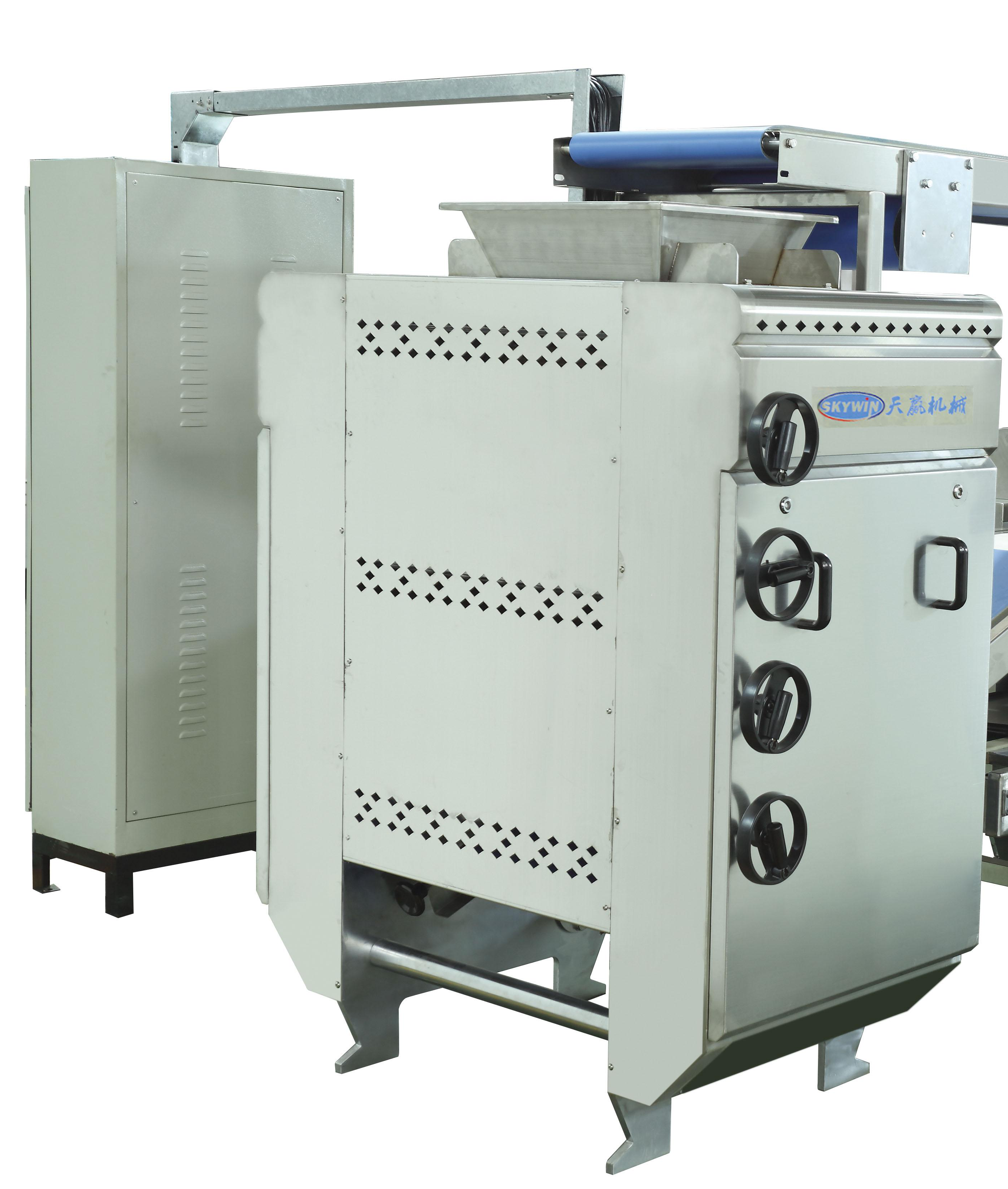

Groups of Gauge Rolls (4 groups)
Combination dough feeding and Sheeting machine for hard biscuit
sheeting.
Tray type Hard &Soft biscuit Combined Forming Machine
1. Rotary Cutter and Rotary Moulder
2. Designed for forming soft and hard biscuit, with the changeable
moulds. Separated motors control the mould and conveyor belt.
3.The first picture shows for hard biscuit making, with belt
automatic checking device.
4.The second picture shows for soft biscuit making, with belt
automatically adjust device.
Separating and Scrap return system for Hard biscuit
Function:Separate scraper and forming biscuit
1.Food grade PU conveyor belt with guides groove
2.Full 304 stainless steel frame
3.Pneumatic device automatic tracking and tension
4.Siemens inverter and PLC touch screen 6.Chinese brand motor and
gearbox
Biscuit Mould
Can be customized.
