Brand Name : | skywin |
Certification : | ce |
Supply Ability : | 100 Set/Sets per Month sandwich cookie machine |
Price : | $10,000.00 - $50,000.00 / Set |

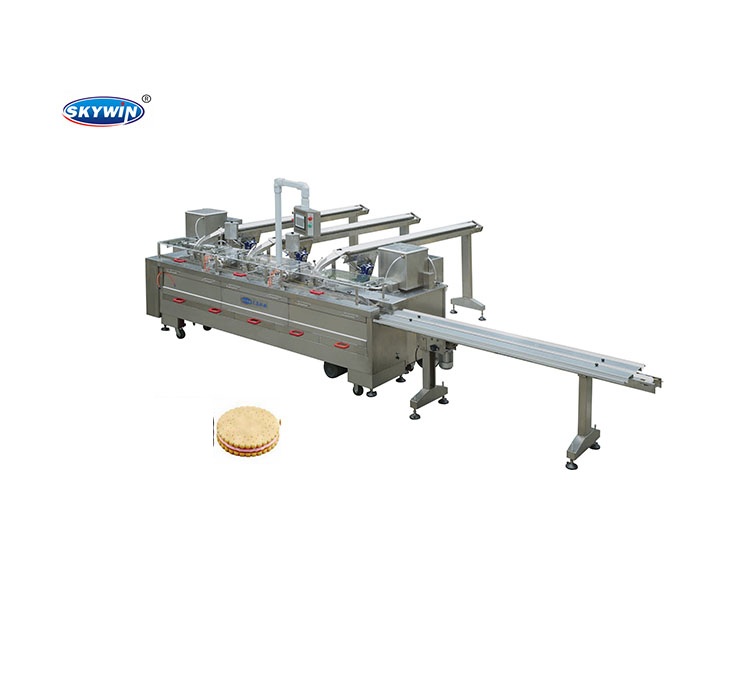

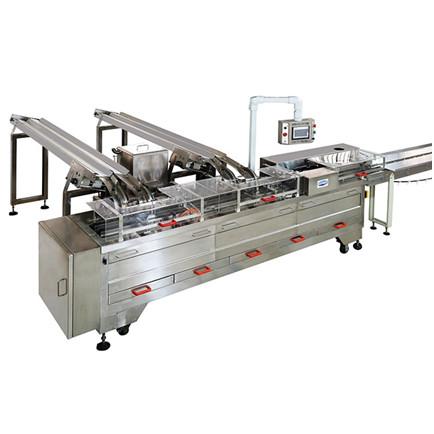

Sandwich biscuit machine can make one color ,two color 2+1,3+2
sandwich biscuit with cream ,jam ,chocolate and so on .
We can make single row ,two rows ,four rows ,six rows ,high speed
sandwich biscuit machine by advance structure&design . Just
according to customer special requirement .
Packing type : trayless packing ,pillow packing ,depend on customer
demand .
Funtion | Double-lane single flavor cream / jam sandwiching machine | |||
Round | Square | |||
Biscuit size | 30-70mm H3-8mm | L35-70mm W30-60mm H3-8mm | ||
Capacity | 800-1200sandwiches/min | |||
Operating voltage | Single-phase AC 220V 50Hz | |||
Machine size | 4500*1900*1470mm | |||
Total power | 4Kw | |||
Weight | 850kgs | |||
Special specification is acceptable |
(1). PLC for simple operation including machine set-up, hopper
controls, speed adjustments
(2). Removable scrap trays are provided for simple scrap collection
and machine cleaning
(3). Easy to operate: Simple adjustments for machine speeds, cream
volume
(4). Sanitary design with stainless steel for food contact parts,
including cream stencil and interchange faster
(5). Separating cream holding tank and feeding system
(6). No biscuit no cream system
(7). The pusher with double chain assure machine running stable and
cleaning and maintenance
(8).Every cream hopper with independent motor and reducer
(9).Mobile cream hopper can cleaning while finish working
separately
(10)SUS304 stainless gear pump, connection tubes between cream
hopper and stencil are jacket design.
(11) Temperature metering device installed the cream stencil and
convenient change-over stencil design for different cream shapes
PU conveyor for biscuit feeding without noise ,avoid to break biscuit integrity.

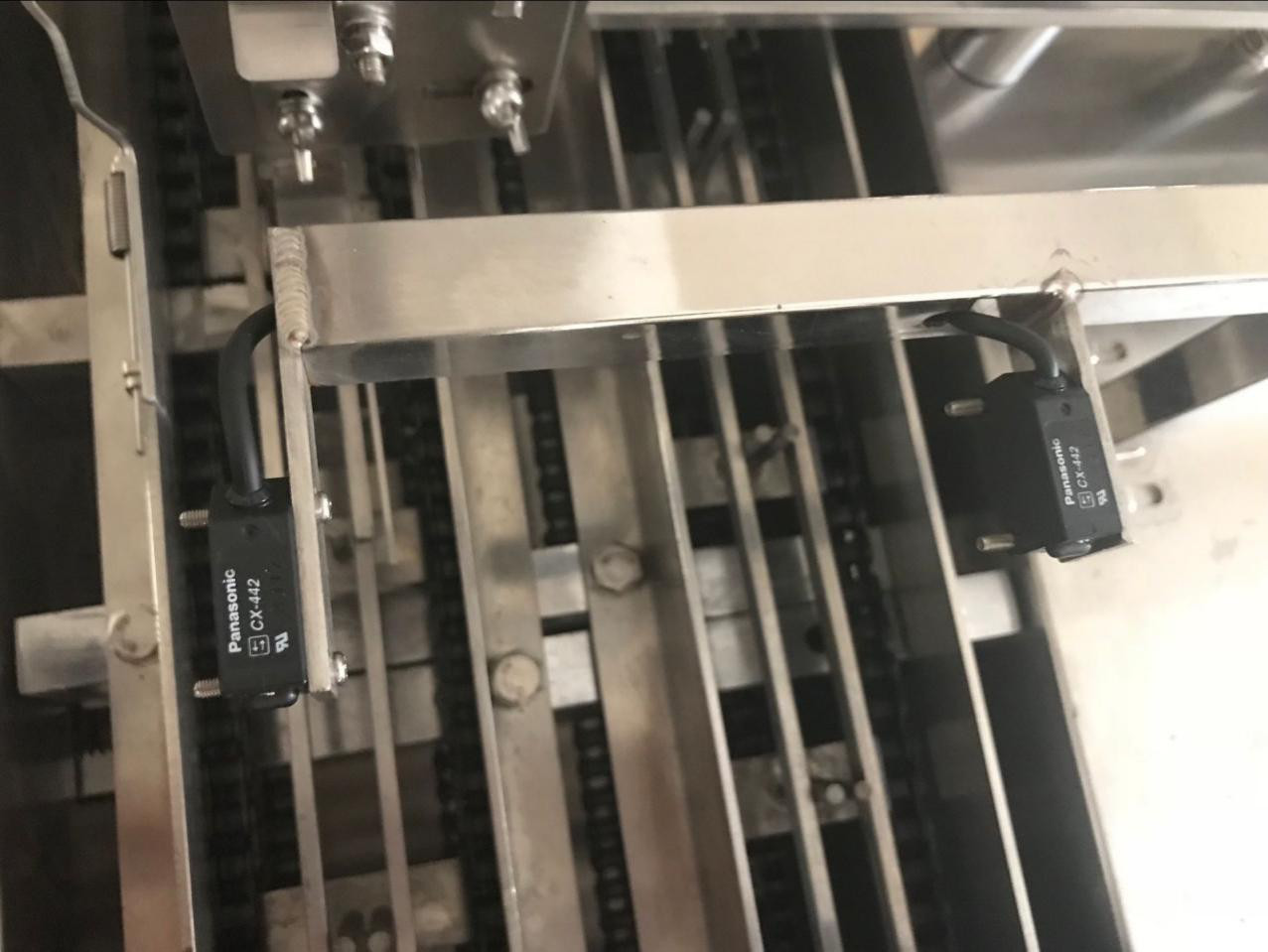

Electric eye
A hand wheels can adjust the size of row according biscuit size in 15 seconds, save more time.
![]() |
