Product Description
A whole line consist of:
· 1.Horizontal dough mixer, 250kg/batch, vertical dough mixer
500kg/batch
· 2.Automatic dough tipper and feeding system
· 3.Three-roll combination sheeter for feeding and sheeting dough
· 4.Laminator for overlapping dough to sheeting on gauge rolls,
included cream spreading machine.
· 5.Gauge rolls
· 6.Rotary cutting machine for hard biscuit forming
· 7.Scrap collection and return system
· 8.Rotary moulder for soft biscuit forming
· 9.Salt/sugar spreading machine
· 10.Tunnel oven, electric, indirect gas fried or hybrid gas oven for
option, length cis depend on capacity.
· 11.Oil spraying machine
· 12.Turning machine 180degree or 90degree design as per the plant
length
· 13.Cooling conveyor
· 14.Biscuit stacking machine (start wheel stacker or penny stacker)
Detail information

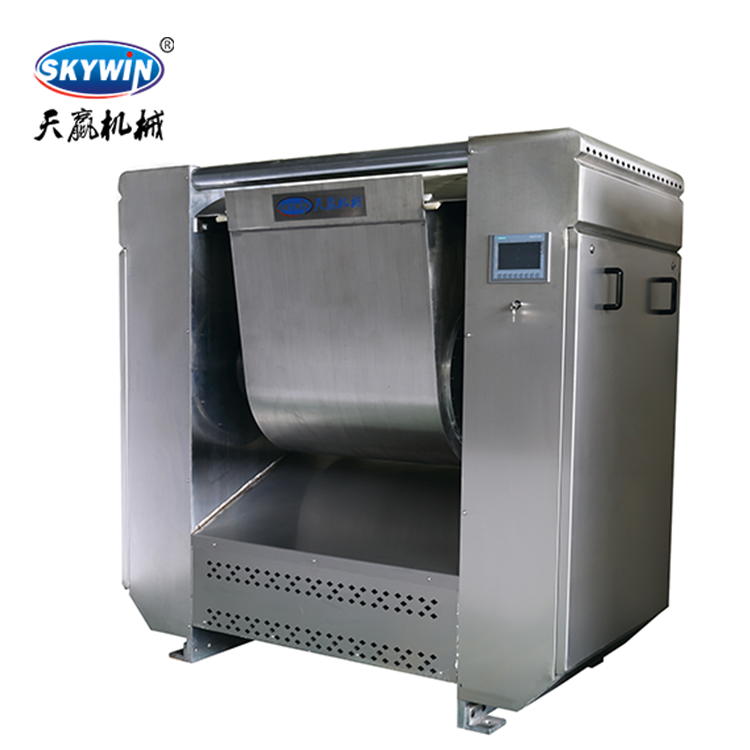

This machine is used in dough mixing, it is suitable for hard
biscuit and soft biscuit.The dough through mixing, dough surface will be good elasticity and smoothness.Its capacity including:
50kg,150kg,250kg,400kg,700kg. The mixing blade and bucket are made
of 304SS,U-form bucket has temperature insulation function,simple
operation and safety.
Main Feature:
Special for hard and soft biscuit dough, Twin direction spiral
mixing Steel blade |
Mixing speed: 25r/min to 50r/min |
Mixing capacity: 200kg/batch |
Mixing tie: 15~25minutes/batch |
Double jacket cooling water circuit |
304# Stainless steel Bowl |
Hydraulic pressure tipping, power 2.2kw |
Mixing dough
Packaging & Shipping
Step 1: Mechanical surface coated with preservative solution (to
protect stainless steel).
Step 2: The plastic cushion packing machine (prevent bump).
Step 3: Plastic film packaging (to prevent ventilation).
Step 4: Wooden case / frame packaging (easy to transport).
Step 5: Tie the bandage outside of the wooden case (reinforcement
overall).
Contact
♥Looking Forward To Your Specific Enquires.♥
Skywin Foodstuff Machinery Co. Ltd
