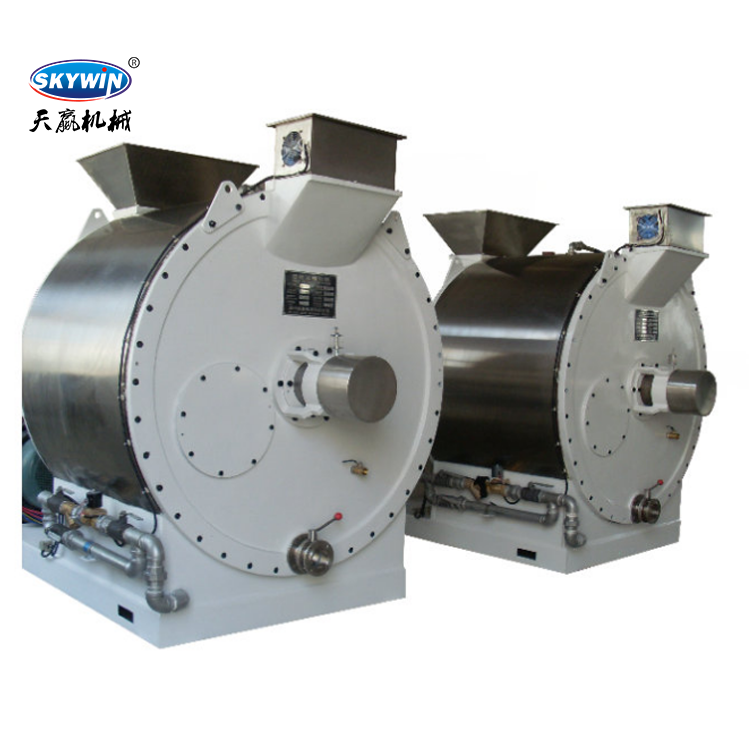

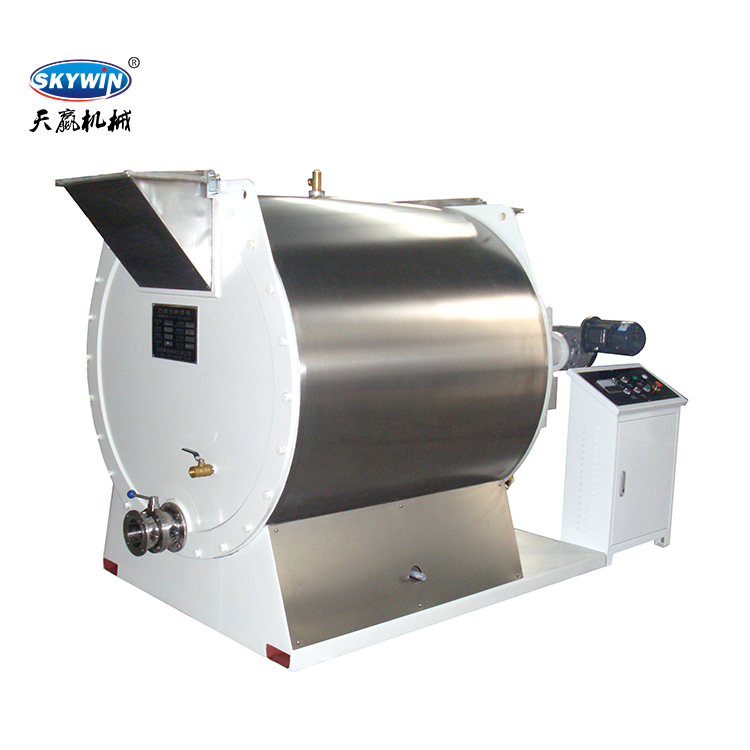

Chocolate Refining Conch Chocolate Conching Machine
Our machine has CE certificated
JMJ Chocolate Refiner and Conche is the main machine in chocolate
production and can be used for refining and conching chocolate
pastes/mass, and is also suitable for refining jam, peanut butter
or other liquor/pastes. This model is usually for small batch
chocolate production or sample making of chocolate factory with
manual blade tightening
Model:JMJ40
Capacity:40L
Fineness:20-25um
Duration:7-9h
Main Power:2.2kw
Heating power:2kw
Weight:360kg
Outside Dimension:110*800*110mm
Model:JMJ500A
Chocolate Refiner and Conche is the main machine in chocolate
production and can be used for refining and conching chocolate
pastes/mass, and is also suitable for refining jam, peanut butter
or other liquor/pastes. This model has electric blade tightening.
Capacity:500L
Fineness:20-25um
Duration:12-18h
Main Power:15kw
Heating power:7.5kw
Weight:2800kg
Outside Dimension:2500*1080*1370mm
Model:JMJ1000A
Capacity:1000L
Fineness:20-25um
Duration:14-20h
Main Power:22kw
Heating power:7.5kw
Weight:3500kg
Outside Dimension:2780*1330*1800mm
Model:JMJ2000C
JMJ2000C Chocolate Refiner and Conche is the main machine in
chocolate production and can be used for refining and conching
chocolate pastes/mass, and is also suitable for refining jam,
peanut butter or other liquor/pastes. This model is suitable for
medium and big size factories with electric blade tightening.
Capacity:2000L
Fineness:20-25um
Duration:18-22h
Main Power:37kw
Heating power:9kw
Weight:5300kg
Outside Dimension:3320*2000*1950mm
Model:JMJ3000C
Capacity:3000L
Fineness:20-25um
Duration:18-22h
Main Power:55kw
Heating power:9kw
Weight:8500kg
Outside Dimension:4200*2000*1950mm
SJB25C Chocolate Delivery Pump
Technical Parameters:
Flow Speed: 25L/Min
Motor Power: 0.75KW
Inlet and outlet Diameters: 1 Inch
Machine Main Material: SUS304 pump head; Siemens electrical
components; Chinese domestic brand motor
Others: Gear pump, jacketed hot water circulating insulation,
continuously variable transmission
