Automatic Granular Vertical weighing & packaging machine Unit is
specially designed for granular material packaging.Basically the
machine unit equips with Linear weighing machine or Multi-head
weighing machine to pack different kinds of granular,Widely used in
the area ofBiscuits, Cookies, Bear Biscuits,seeds,roasted food,granular pesticides,rice,grain legumes and bulk
materials packaging.
Advanced Technology
Technical characteristics:
1. English and Chinese screen display, operation is simple.
2. PLC computer system, function is more stable, adjustment any
parameters not need stop machine.
3. It can stock ten dispose, simple to change variety.

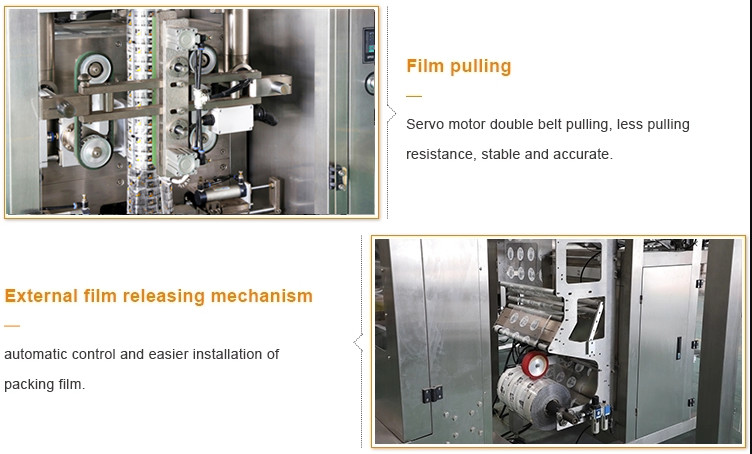

4. Sever motor drawing film, position accurately.
5. Temperature independent control system, precision get to±1°C.
6. Horizontal, vertical temperature control, suitable for various
of complex film, PE film packing material.
Technical parameters:
Type
SKY-520
Bag length
80-350mm(L)
Bag width
60-250mm(W)
Max width of roll film
520mm
Packing speed
10-120bags/min
Measuring range
3000ml
Air consumption
0.65mpa
Gas consumption
0.4m³/min
Power voltage
220V/50HZ
Power
3KW
Dimension
(L)1500*(W)1270*(H)1600mm
Deadweight of machine
800Kg
Weigher Technical characteristics:
1.Select the best combination immediately from diversified weight
combination through computer with perfect combination of high
precision and high speed.
3.Liquid crystal screen operating system in multiple languages such
as Chinese and English, etc.
4.IP65 grade water-proof and dust-proof design.
Technical parameters:
Type
SK-14
Measure number
14
Range of single weighing
10-1000g
Quantity precision
0.1-1.5g
Average tolerance of single bag
0.2-0.7g
Weighing speed
50-120bags/min
Hopper capacity
1300ml
Hopper type
Double hoppers without memory
Preliminary programs
99kinds
Net/gross
300/370Kg
Overall size
1140mm(L)×1210mm(W)×1680mm(H)
Detailed Images
Biscuit packing machine
Working Plat Form
The control screen controls the machine use Siemens
Electronic we use Mitsubishi/Siemens and well-known

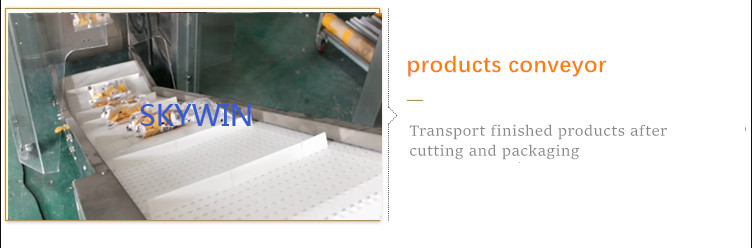

Conveyor conveying finished products
Features:
* Full-automatic Weigh-Form-Fill-Seal type, efficient and simple to
use. * Use famous brand electric and pneumatic components, stable and
long life circle. * Use superior mechanical components, reduce the wear out loss. * Easy to install film, auto correcting the excursion of the film. * Apply advanced operating system, easy to use and reprogrammable.
* To be used on Jintian High quality machine, it makes your packing
work easily and efficiently
304 stainless steel Vertical Packing Machine Main Machine, perfect
pulling and sealing pillow bags.
Packing&Shipping
Accessories
Machine component:
Chinese famousqualitybrand motor & gearbox, SEW for Optional.
SKF bearings/NSK bearings
SMC Penumatic cylinder for belt tension and deflecting adjustment
304 Stainless steel cover, thickness 1.5-2.0mm, The part Contact
Food are 304 SUS, Or Food grade.
SIEMENS or Schneider transducer electric and PLC touch screen
control.
Schneider Brand Swicthes and Electricity Components.
Guarantee for 1 year along with recommended spare parts for 1 year.
Related Products
Full Automatic Flow Feeding and Biscuit/Chocolate/Cookies Packing
Line
Suitable for all shipment standard.

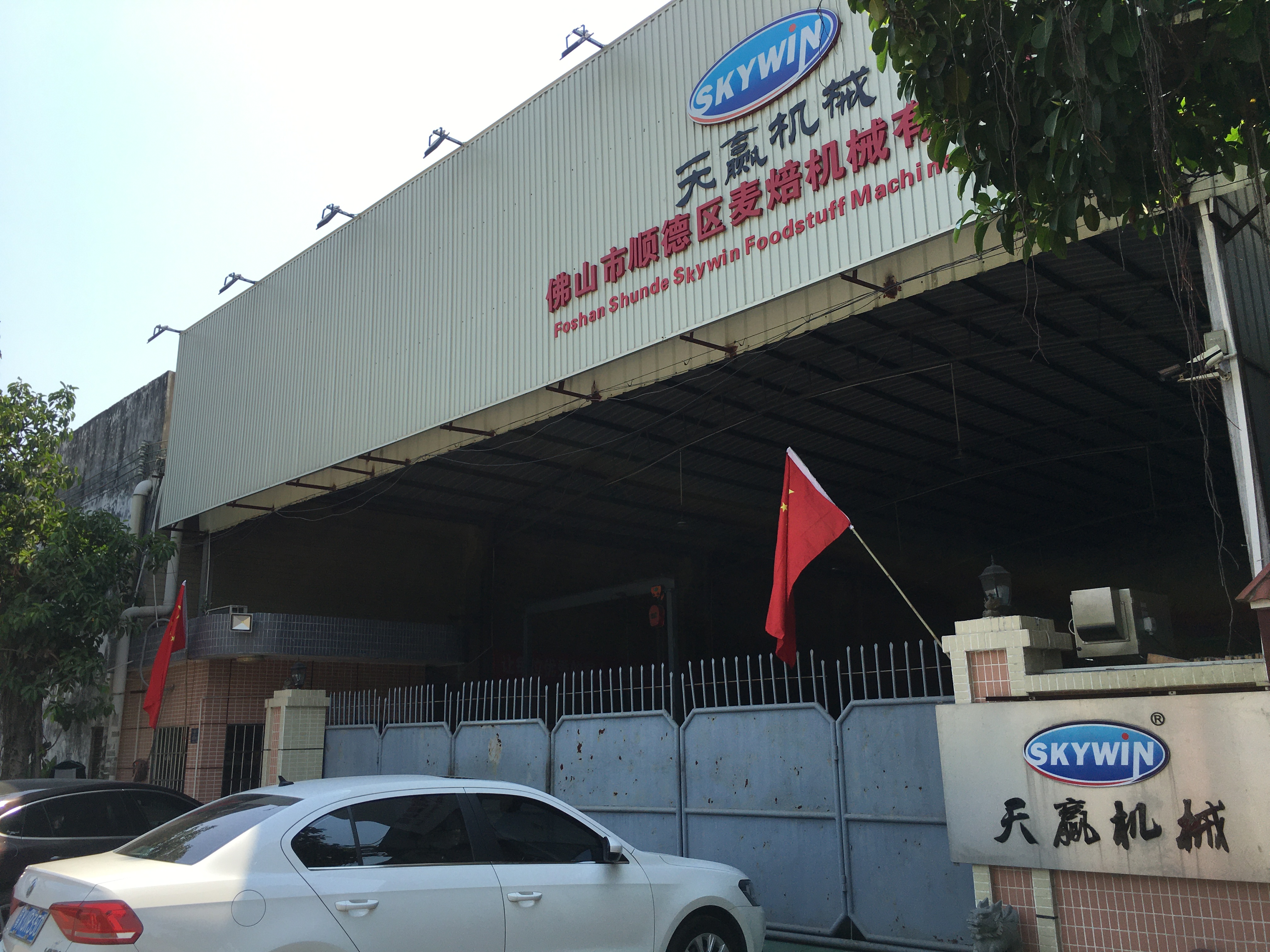

Company Introduction
