CE Automatic Vertical Packaging Machine Animal Biscuits And Sweet
Candy Packaging Machine
Product Description
Automatic Granular Vertical weighing & packaging machine Unit is
specially designed for granular material packaging.Basically the
machine unit equips with Linear weighing machine or Multi-head
weighing machine to pack different kinds of granular,Widely used in
the area ofBiscuits, Cookies, Bear Biscuits,seeds,roasted food,granular pesticides,rice,grain legumes and bulk
materials packaging.
Advanced Technology
Technical characteristics:
1. English and Chinese screen display, operation is simple.
2. PLC computer system, function is more stable, adjustment any
parameters not need stop machine.
3. It can stock ten dispose, simple to change variety.
4. Sever motor drawing film, position accurately.
5. Temperature independent control system, precision get to±1°C.
6. Horizontal, vertical temperature control, suitable for various
of complex film, PE film packing material.
Technical parameters:
Type
SKY-520
Bag length
80-350mm(L)
Bag width
60-250mm(W)
Max width of roll film
520mm
Packing speed
10-120bags/min
Measuring range
3000ml
Air consumption
0.65mpa
Gas consumption
0.4m³/min
Power voltage
220V/50HZ
Power
3KW
Dimension
(L)1500*(W)1270*(H)1600mm
Deadweight of machine
800Kg

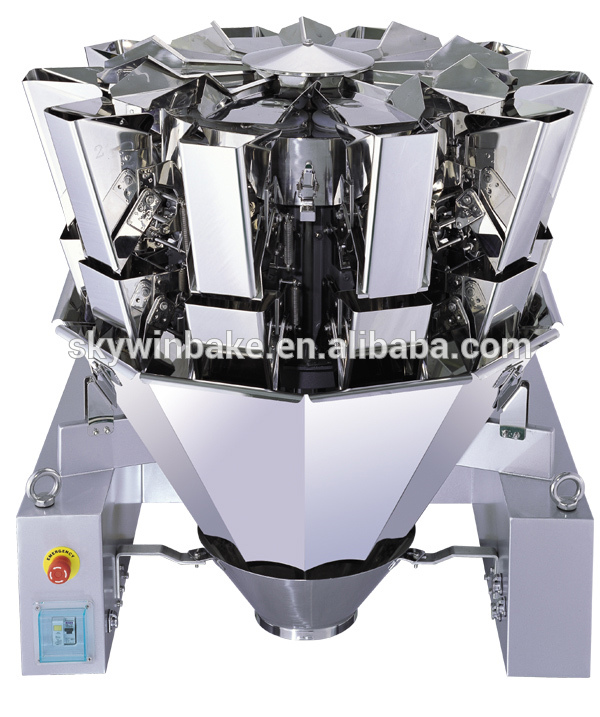

Weigher Technical characteristics:
1.Select the best combination immediately from diversified weight
combination through computer with perfect combination of high
precision and high speed.
