Product Description
2021 Skywin 100kg to 1500kg Gas and Electric Oven Glucose Biscuit
Production Line Price
Biscuit Process:
This machine is available for all kinds of biscuits( Hard and Soft biscuit, Soda Cracker, Cookies, also Stick biscuit,
Print biscuit and Chocolate filling biscuit), different shape biscuit just need to change the mould ,we also can design mould for you as per your details.
1. It is full automatic, save labor, easy to operation, high quality,
reasonable price to win customer.
reply and reputation.
2.
| Electrical Component | Brand |
| Automatic Control System | Full auto PLC touch screen control |
| Bearing | NSK bearing |
| Auto Correctice System | FESTO air cylinder auto corrective system |
| Mortor | SEW gearbox & motor |
| Transducer | SIEMENS electronic & transducer |
| Burner System | Weishaupt burner(Germany) |
| Certification | ISO,CE quality standard |

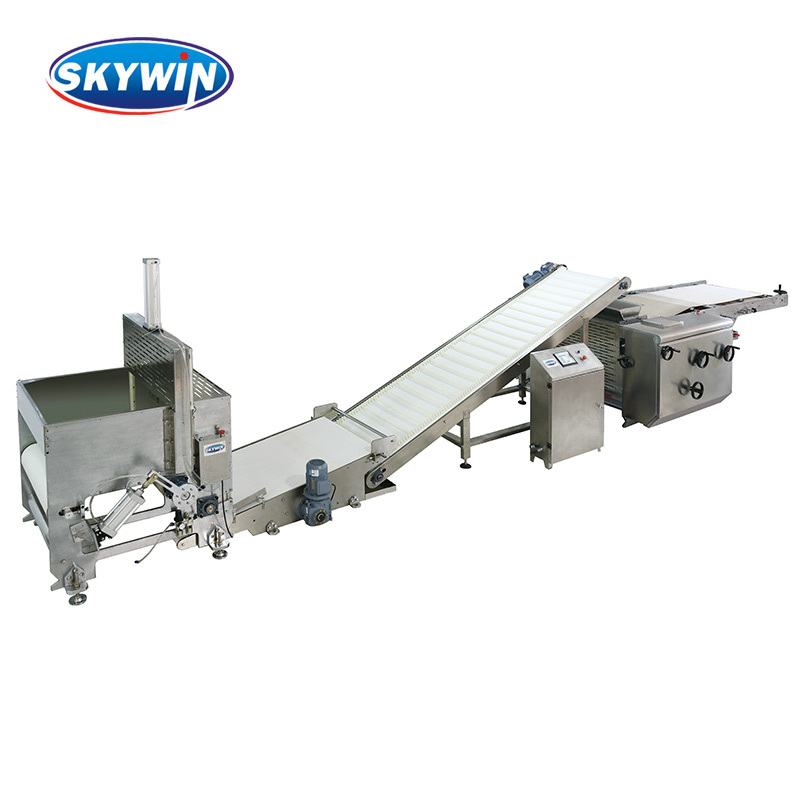

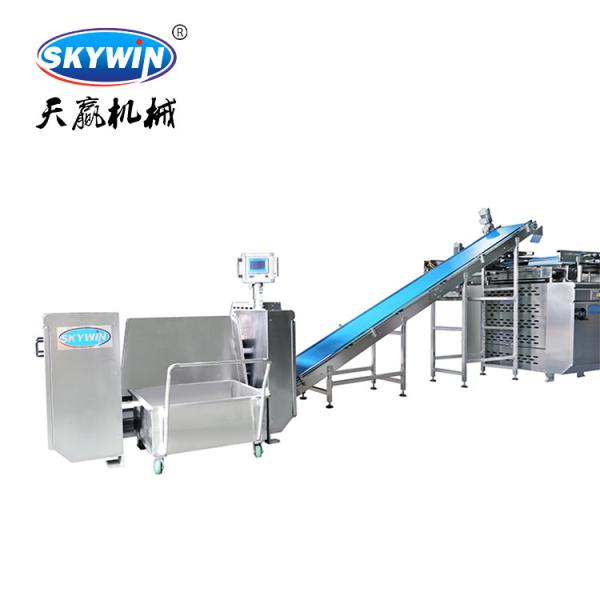

The biscuit line consist of:
| Item No. | Item |
| 1 | Horizontal Dough Mixer or (Vertical Dough Mixer),100-500kgs/batch |
| 2 | Dough feeding system, included small dough truck |
| 3 | Automatic tipper |
| 4 | Dough cutting&transport machine |
| 5 | Three-roll combination sheeter |
| Gauge rolls |
| 6 | Horizontal Laminator |
| 7 | Rotary Cutter for Hard biscuit forming machines, can be installed
stick biscuit forming machine, printing biscuit machine(to make
print biscuit), filling biscuit machine(after oven to fill
chocolate inside of biscuit) |
| Rotary moulder for soft biscuit forming |
| 8 | Salt/sugar sprinkler |
| 9 | Tunnel oven( electric, indirect gas fried or hybrid gas oven for
option)length is depend on capacity |
| 10 | Oil sprayer |
| 11 | 90/180degree Curve |
| 12 | Cooling conveyor |
| 13 | Stacker(start wheel stacker or penny stacker) |
| 14 | Packing table |
| 15 | Separate machine and recycle device |
| Additional equipments: | Biscuit sandwiching machine, or Auto connect to packaging machine |
Some important parts of biscuit production line
Horizontal Dough Mixer
capacity:100-550kg/batch (HM-250)
Suitable for mixing flour dough for biscuit and cake production,
cream mixing and etc.
Special for hard and soft biscuit dough, Twin direction spiral
mixing Steel blade
Three-roll combination sheeter
3pc Roller as T from, it can press the dough twice through one
roller.
And it is convenience for the dough go inside the Roller for
pressing.
Rotary Moulder for soft biscuit forming
It will be moulded and shaped by moulds.
Tunnel oven, electric, indirect gas fried or hybrid gas oven for
option,
Oven length: 25m-70m, baking capacity from 200kg-1500kg/hour. We
suggest oven length minimum 25m, then the oven can bake top grade
quality biscuit.
Cover made by Painted steel or 304 Stainless steel:
This is GAS OVEN
Cooling conveyor, Stacker.
Cooling conveyor is used for biscuit cooling naturally after
bake,with pneumatic tension device
and belt automatic aligning system.
Cream/Jam/Chocolate/Penut Sandwcih Machine with Packing Machine
Basic packing style:
On edge packing, flow pack
