Commercial Wafer Making Production Line wafer biscuit making machine

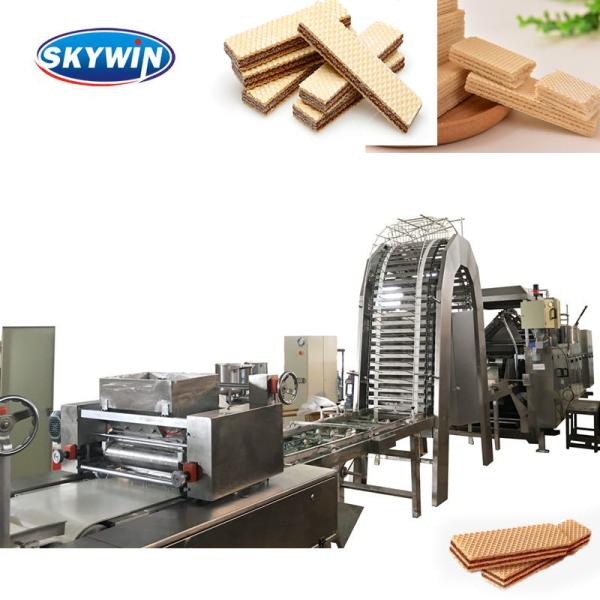

Automatic Wafer Biscuit Production Line Chocolate-Wafer Biscuit Making Machine Line

Full-automatic wafer production line is designed and manufactured according to the facts of domestic biscuit manufacturing industry and absorbing the most well-known wafer production lines of many oversea manufacturers, which features reliable performance,compact structure,small occupation,high yield,lower energy consumption,convenient maintenance,simple operation.

It consists of baking oven,cooling tower,sheet picking machine,cream spreading machine,cooling cabinet,cutting machine,batter mixer,cream mixer and smash machine.

The driven motors adopt SEW Germany, the bearings use SKF Germany. Operating system uses PLC programing to make the process automated and easy control.

Commercial Wafer Making Production Line wafer biscuit making machine

Products Description

Wafer Batter mixing

This makes the batter for the system to produce the wafers. This system constitutes of: batter mixing tank and batter storage tank and pumps and fittings for transferring batter. Batter mixing tank, batter transfer pump and pipes and fittings all adopt Stainless Steel food quality material. Good tightness is required for electric control cabinet, Capacity of the batter will be 25kgs of flour per batch which can be converted into about 65 kg batter within 5 minutes of mixing. Batter Mixer will have flat type lid to cover the mixing units.

Electric component	SIEMENS
Transducer	SIEMENS
Switch & Button	Schneider
Motor & Gearbox	GUOMAO
Bearing	SKF
Electonic	Schneider

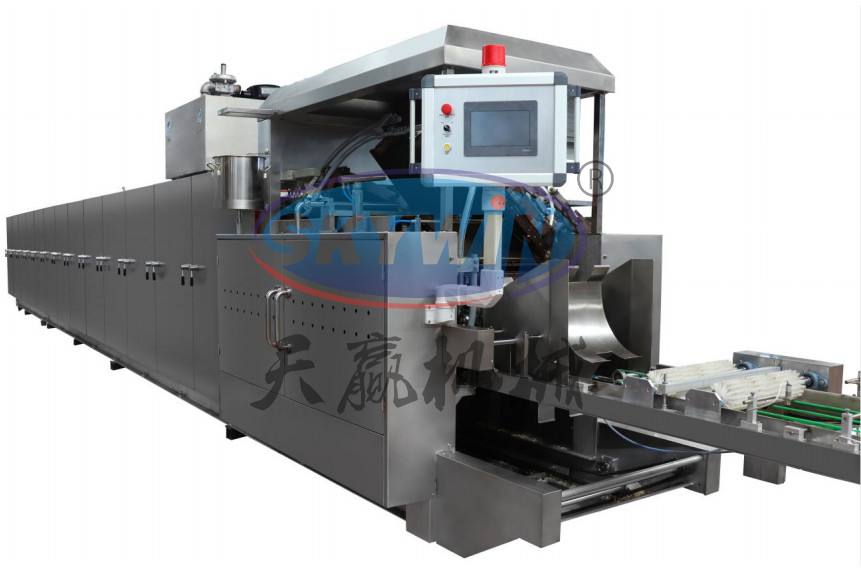

Baking oven

Baking oven consists of batter injection system, gas heating system and gas leaking alarm system, plates’ transferring and connecting devices, is full metal structure with perfect heat preservation, with elegant appearance. Observation windows are set for each heating area to facilitate the inspection of production, the burner is redesigned and adopts state of art energy-saving burning technology to improve the heat efficiency greatly. The temperature in the oven is uniform.

Commercial Wafer Making Production Line wafer biscuit making machine

Door type cooling tower

This machine raises the wafer sheets to have natural cooling. This machine relieves heat stress applied on the wafer sheet during
baking process. Unless the sheets are cooled smoothly, it tends to break even for a small impact during further processing of the
wafers due to heat stress. This machine also called stress-reliving machine. This is an improved system according to your
requirement increasing width & height of the carry arms. All parts that contact the food are made out of Stainless steel.

Commercial Wafer Making Production Line wafer biscuit making machine

Cooling cabinet

This cooler adopts refrigeration compressors which working with cold water (4ºC), the inside temperature can be adjusted from 0ºC
to 8ºC. it is used for cooling the laminated wafers with cream filled, whole shell are made of Stainless steel, And inside wall is
made of PB board, in-out convey belts are adopted food grade PVC. In order to keep the air quality, each in-out of cold air has a
filter mesh to filter the impurity in the air.

Cream spreading machine(Single head)

Spreading cream on surface of wafer sheet by pressing roller.

The cream hopper with heating device keeping the hopper temperature

( two or three cream spreading head is available for option, with extra price)

Commercial Wafer Making Production Line wafer biscuit making machine

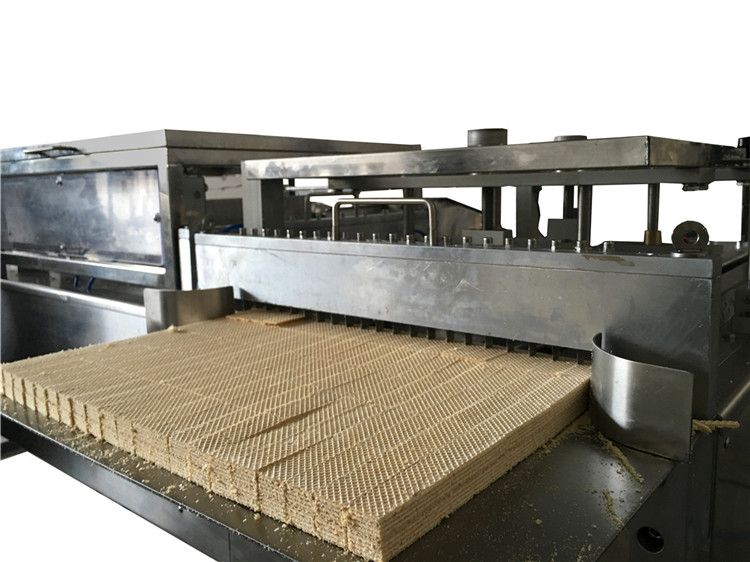

Wafer cutting machine

Cutting machine adopts PLC program control automation and goes well with cutting conveyors. Easy to change the cutters. The cutting layer is optional and adjustable. Cutting channel using organic glass shield as safety protection.

Company Introduction

SKYWIN Food Machinery Group Company was Founded in 2010,which is lotated in Beijiao, Shunde, Foshan, Guangdong, CHINA Foshan City
is stainless steel Birthplace.
Skywin Group has two factories, one is for Large Biscuit & Cookies & Wafer production line, one is for Automatic Biscuit
sandwiching machine with Packing system. We have more than 60 professional staffs to match delivery time, base on “International
Quality, Competitive Price”.

After Sales Service

Packing&Shipping

Step 1: Mechanical surface coated with preservative solution (to protect stainless steel).
Step 2: The plastic cushion packing machine (prevent bump).
Step 3: Plastic film packaging (to prevent ventilation).
Step 4: Wooden case / frame packaging (easy to transport).
Step 5: Tie the bandage outside of the wooden case (reinforcement overall).
