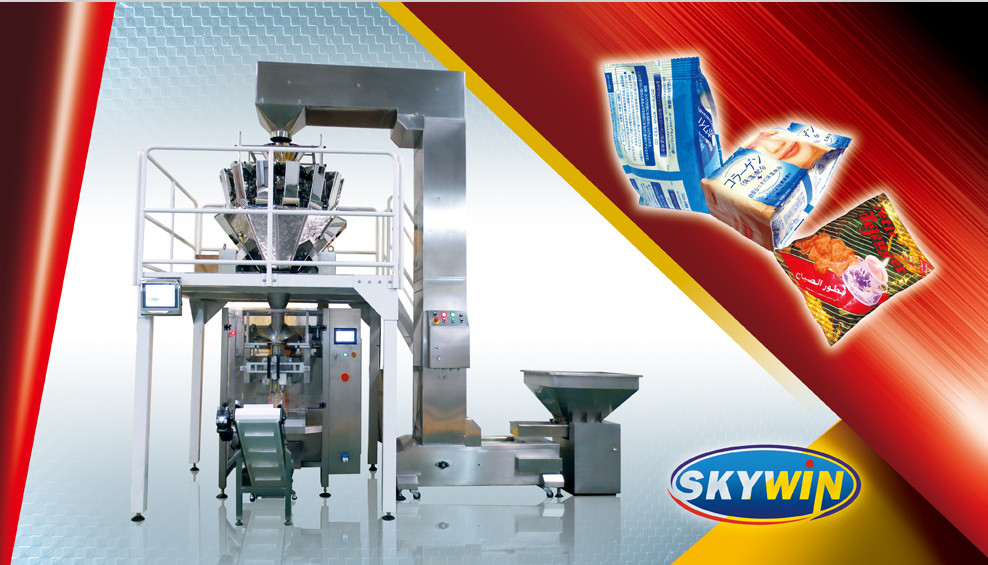

High Speed, Automatic Multihead Weigher, Vertical Packing Machine For Food Packing

Automatic Packing Packaging Machine

Application

SCOPE OF APPLICATION:

Whole grains, puffed food, granule seasoning, frozen food, leisure food

Packing bag specification

Model	SK-H-420	SK-H-520	SK-H-620	SK-H-720
Structure	Stainless steel
Film width	Max.420mm	Max.520mm	Max.620mm	Max.720mm
Bag width	60-200mm	80-250mm	110-300mm	100-350mm
Bag length	50-230mm	50-300mm	50-380mm	160-390mm
Film material	Laminated or single-layer
Packing speed	15-100bpm
Air requested	0.2 M3/min, 0.6Mpa			0.7 M3/min, 0.6Mpa
Power supply	220V, 50HZ, 3KW	220V, 50HZ, 4KW	220V, 50HZ, 4.5KW	220V, 50HZ, 4.5KW
Weight	450Kgs	550Kgs	680kgs	750kgs
Dimension	1390x1070x1290mm	1650x1300x1700mm	1680x1400x1850mm	1750x1700x2050mm

Detailed Images

1. English touch screen display, intuitive operation, simple.
2. PLC computer control system, more stable operation, can adjust the parameters without shutdown.
3. Ten sets of parameters can be stored, more accurate when changing varieties.
4. Using servo motor to pull touch, more accurate positioning.
5. Independent temperature control module system, independently set the temperature on the touch

screen, the degree can reach ±1℃.
6. Horizontal and longitudinal sealing temperature independent control, can be good for all kinds of

composite film, PE film and other packaging materials.
7. The packaging styles are diversified, such as back seal, insert Angle, bag connection, punching

and so on.
8. Bag making, sealing, packaging and printing date should be completed at one time.
9. Clean working environment with low noise.

Customize special shape according to customer requirement

Our Advantage

1. The machine is advanced in design, reasonable in structure, convenient in adjustment,

operation and maintenance

2. Positioning standard of servo film transport system Synchronous belt transport

film, stable and reliable

3. Automatic rectifying function, save time and film, improve the reliability and intelligence

of the whole machine

4. Equipped with a variety of automatic alarm protection functions to minimize the loss

5. This machine is matched with metering device, which can automatically complete

the whole process of product metering, feeding, bag filling, date printing,

gas filling (exhaust) and finished product output.

Packaging & Shippment

-WELCOME TO COMTECT WITH ME-

Welcome to visit our factory! please contact us at anytime.
Warmly welcome you to visit our factory.

Skywin Foodstuff Machinery(Group) Co,Ltd, founded in 2010, is one of leading high-tech manufacturer for biscuit cookies and wafer making machine.Through resource integration, comprehensive integrated solutions, we providing more thoughtful services to our customers with ensuring the products quality and reduce cost effectively.

Team building refers to a series of structural design, personnel motivation and other team optimization behaviors in order to maximize team performance and output."Staff are first, customers are highest "is the basic philosophy that we've been insisting since Skywin founded. Our company aim to build a team with ability of learning-oriented, high execution, cohesion. Sports room was been set up for staff relaxation. Company's overall image and working environment and positive energy has attracted a group of R&D team and formed from the biscuit machine to the biscuit making machine line terminal product research and development, manufacture complete industry scale.

Skywin with manufacturing, sales and technical after-sales service as a whole system,engaged in professional products. The manufacturers have high-quality professional technicians and advanced modern production equipment. All of the products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.Their well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction.
